8536SGO1V07H30S Schneider Electric Electronic Components

8536SGO1V07H30S on Powermatic Associates
Schneider Electric

Part#:8536SGO1V07H30S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

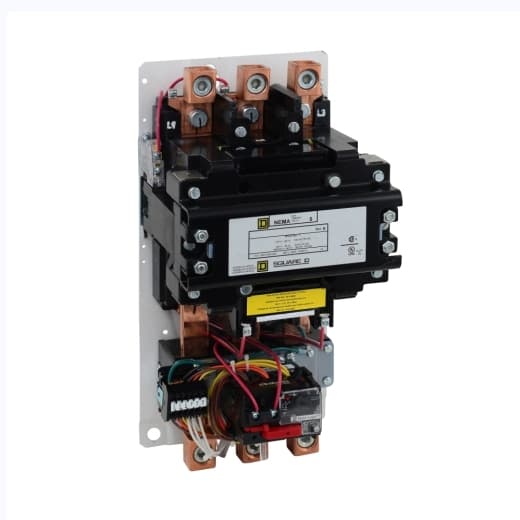

Non-Reversing Starter Size 5, 3-Pole, Motor Logic SSOLR, Open +Options

Product Details

  • NEMA Size
    5
  • Rated Current
    270 A
  • Terminal Type
    Screw clamp terminals
  • Height
    17.56 in (446.02 mm)
  • Width
    8.56 in (217.42 mm)
  • Starter Type
    Non reversing
  • Control Units
    No control units
  • Product Range
    S
  • Control Circuit Type
    Separate control circuit
  • Product Type
    Motor starter
  • Auxiliary Contacts
    Without
  • Number Of Poles
    3P
  • Phase
    3 phase
  • Type Of Overload
    Solid state Motor Logic class 10/20
  • Maximum Voltage Rating
    600 V AC
  • Pilot Light
    Without pilot light
  • Depth
    8.75 in (222.25 mm)
  • Coil Voltage
    550 V AC 50 Hz 600 V AC 60 Hz
  • SCCR
    Circuit-breaker 400 A maximum: 100 kA at 480 V AC Fuse J 400 A maximum: 100 kA at 600 V AC Fuse T 400 A maximum: 100 kA at 600 V AC Fuse RK1 400 A maximum: 100 kA at 600 V AC Fuse RK5 400 A maximum: 100 kA at 600 V AC
  • Horsepower Rating
    75 HP 200 V AC 100 HP 230 V AC 200 HP 460 V AC 200 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SGO1V07H30S on Powermatic Associates is $9,367.00. Order now.
