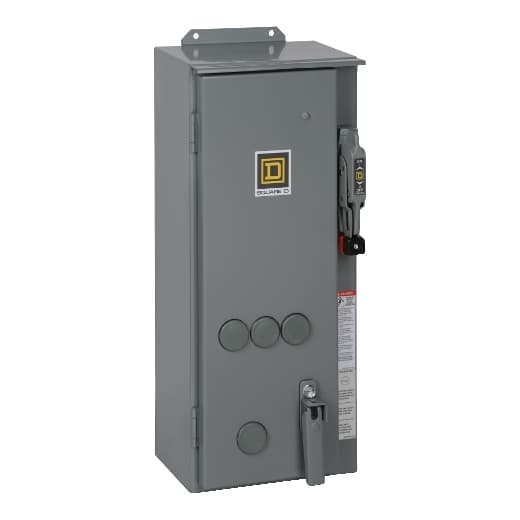

8538SCA21V06 Schneider Electric Electronic Components

8538SCA21V06 on Powermatic Associates
Schneider Electric

Part#:8538SCA21V06

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

COMBO STARTER 600VAC 27A NEMA

Product Details

  • Control Circuit Type
    Common control circuit
  • NEMA Size
    1
  • Pilot Light
    No indicator
  • Number Of Poles
    3P
  • Disconnect Type
    Non-fusible disconnect switch
  • Type
    S
  • Maximum Voltage Rating
    600 V AC
  • Starter Type
    Non reversing
  • Auxiliary Contacts
    Without
  • Control Units
    No control units
  • Thermal Overload Type
    Melting alloy 3
  • Product
    Combination Starter
  • Control Circuit Voltage
    440 V AC 50 Hz 480 V AC 60 Hz
  • Horsepower Rating
    7.5 hp 200 V AC, 3 phase 7.5 hp 230 V AC, 3 phase 10 hp 460 V AC, 3 phase 10 hp 575 V AC, 3 phase

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8538SCA21V06 on Powermatic Associates is $1,715.00. Order now.

8538SCA21V06 Related Documents

Catalog-1631040588691.pdfProduct Datasheet-1631040588688.pdfInstruction Sheet-1631040588690.pdf
