8910DPA33V09Y125Y234Y239 Schneider Electric Electronic Components

8910DPA33V09Y125Y234Y239 on Powermatic Associates
Schneider Electric

Part#:8910DPA33V09Y125Y234Y239

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

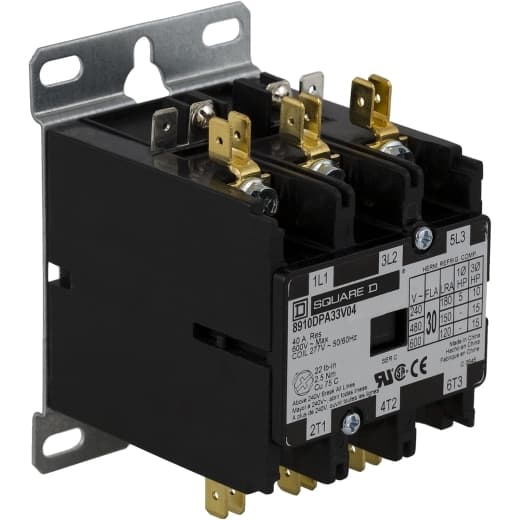

CONTACTOR 600VAC 30AMP DPA +OPTIONS

Product Details

  • Product Or Component Type
    Definite Purpose Contactor
  • Range Of Product
    DPA
  • Line Rated Current
    30 A
  • Marking
    with upside down)
  • [Ue] Rated Operational Voltage
    600 V AC
  • Number Of Poles
    3P
  • Pole Contact Composition
    3 NO
  • Phase
    3 phase
  • [Uc] Control Circuit Voltage
    208...240 V AC 60 Hz 220 V AC 50 Hz
  • Electrical Connection
    Box lugs Screw terminal
  • Locked Rotor Rated Current
    150 A 460 V AC 120 A 575 V AC 180 A 277 V AC
  • Maximum Horse Power Rating
    2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase 10 hp 230 V AC, 3 phase 15 hp 460 V AC, 3 phase 20 hp 575 V AC, 3 phase

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8910DPA33V09Y125Y234Y239 on Powermatic Associates is $112.88. Order now.

8910DPA33V09Y125Y234Y239 Related Documents

Instruction Sheet-1631036889993.pdfProduct Datasheet-1631036889997.pdfCatalog-1631036889995.pdf
