Schneider Electric

Part#:9001KP1G9

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

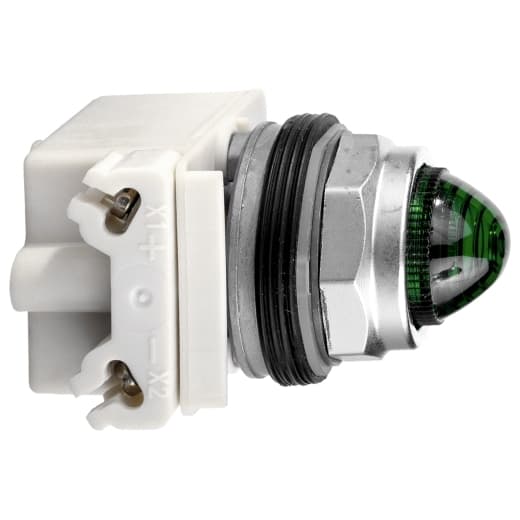

Schneider Electric 9001KP1G9 is a pilot light designed for a variety of industrial applications. It features a plastic lens cap with a domed lens type and a green sensing distance, indicating its functionality as a pilot light. This part operates with a network frequency of 9001K and is compatible with AC 110 V circuits. It has a primary voltage of 30 mm and a wavelength designed for 50/60 Hz operations. The 9001KP1G9 is rated for use in environments requiring IP66, NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, and NEMA 13 specifications, ensuring its suitability for a wide range of protective scenarios. The lens cap's diameter is 1.18 inches, emphasizing its compact and efficient design for signaling purposes.

Product Details

  • Shape Of Signaling Unit Head
    Round
  • Operating Position
    Any position
  • Net Weight
    0.46 lb(US) (0.21 kg)
  • Cap/Operator Or Lens Colour
    Green
  • CAD Overall Height
    2.76 in (70 mm)
  • Product Or Component Type
    Pilot light
  • Bulb Base
    BA 9s
  • [Ith] Conventional Free Air Thermal Current
    10 A
  • Light Block Supply
    Via integral transformer 120 V AC 6 V)
  • [Us] Rated Supply Voltage
    110...120 V AC
  • Bezel Material
    Chromium plated metal
  • [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
  • Tightening Torque
    7.08 lbf.in (0.8 N.m) IEC 60947-1
  • Light Source
    Incandescent
  • Range Of Product
    Harmony 9001K
  • Device Presentation
    Complete product
  • Mounting Diameter
    1.18 in (30 mm)
  • [Ui] Rated Insulation Voltage
    250 V 2)IEC 60947-1
  • CAD Overall Depth
    1.65 in (42 mm)
  • Lens Type
    Domed plastic
  • Shape Of Screw Head
    Cross slotted
  • Device Short Name
    9001K
  • Short-Circuit Protection
    10 A cartridge fuse IEC 60947-5-1
  • Connections - Terminals
    Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • CAD Overall Width
    2.13 in (54 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9001KP1G9 on Powermatic Associates is $153.00. Order now.
