9421V2A30 Schneider Electric Electronic Components

9421V2A30 on Powermatic Associates
Schneider Electric

Part#:9421V2A30

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

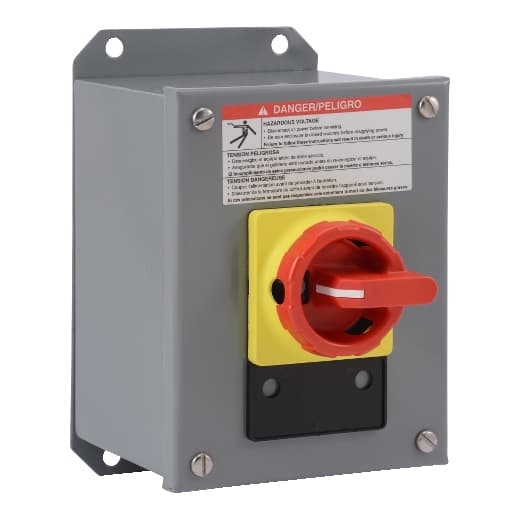

LOADBREAK SWITCH 600VAC 25A IEC

Product Details

  • Color
    Red/yellow
  • Width
    5.5 in (139.70 mm)
  • Auxiliary Contact Composition
    Without
  • Height
    7.38 in (187.45 mm)
  • Enclosure Type
    Dust and damp proof enclosure indoor
  • Enclosure Material
    metallic metal
  • Device Mounting
    Surface
  • Lock Type
    Padlockable
  • Depth
    6.25 in (158.75 mm)
  • Permissible Voltage
    600 V AC
  • Line Rated Current
    25 A
  • Range Of Product
    VARIO
  • Maximum Horse Power Rating
    5 hp 240 V AC 10 hp 480 V AC 15 hp 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9421V2A30 on Powermatic Associates is $168.30. Order now.

9421V2A30 Related Documents

Instruction Sheet-1631036602714.pdfProduct Datasheet-1631036602687.pdfCatalog-1631036602695.pdf
