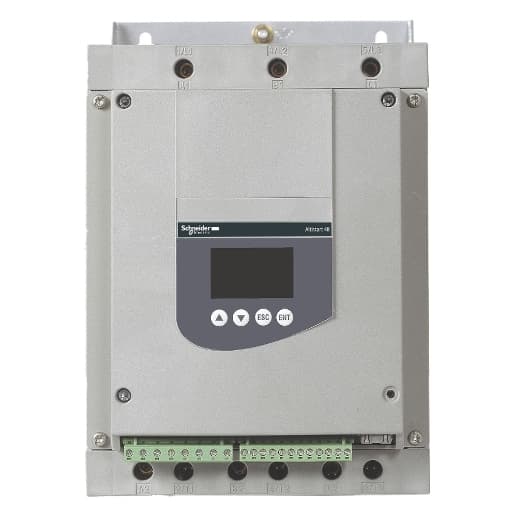

ATS48D38Y Schneider Electric Electronic Components

Product Details

• Connector Type
  1 RJ45
• Analogue Output Type
  Current output AO 0-20 mA or 4-20 mA 500 Ohm
• Depth
  7.48 in (190 mm)
• Type Of Start
  Start with torque control (current limited to 5 In)
• Range Of Product
  Altistart 48
• Communication Port Protocol
  Modbus
• Width
  6.30 in (160 mm)
• Discrete Input Voltage
  24 V <= 30 V
• Communication Data Link
  Serial
• Power Supply Frequency
  50...60 Hz - 5...5 %
• Device Short Name
  ATS48
• Power Supply Frequency Limits
  47.5...63 Hz
• Minimum Switching Current
  10 mA 6 V DC relay outputs
• Physical Interface
  RS485 multidrop
• Product Specific Application
  Heavy duty industry and pumps
• Function Available
  External bypass (optional)
• Max Nodes Number
  31
• Motor Starter Type
  Soft starter
• Height
  10.83 in (275 mm)
• Product Or Component Type
  Soft starter
Assembly Style
With heat sink
Marking
CE
Product Destination
Asynchronous motors
Discrete Output Number
2
Starting Current
0.4...1.3 Icl adjustable
Operating Position
Vertical +/- 10 degree
Power Supply Voltage
208...690 V - 15...10 %
Output Absolute Accuracy Precision
+/- 5 %
Discrete Input Number
5
Transmission Rate
4800, 9600 or 19200 bps
Net Weight
10.80 lb(US) (4.9 kg)
Device Connection
In the motor supply line
Utilisation Category
AC-53A
Discrete Input Logic
Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA
Power Dissipation In W
116 W for standard applications 99 W for standard applications
Icl Nominal Current
38 A connection in the motor supply line for severe applications 38 A connection in the motor supply line for standard applications
Discrete Input Type
PTC, 750 Ohm 77 °F (25 °C) Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Protection Type
Phase failure line Thermal protection motor Thermal protection starter
Motor Power Range AC-3
7…11 kW 200…240 V 3 phase 15…25 kW 380…440 V 3 phase 15…25 kW 480…500 V 3 phase
Maximum Switching Current
Logic output 0.2 A 30 V DC Relay outputs 1.8 A 230 V AC inductive, cos phi = 0.5 20 ms Relay outputs 1.8 A 30 V DC inductive, cos phi = 0.5 20 ms
Discrete Output Type
LO1) logic output 0 V common configurable LO2) logic output 0 V common configurable R1) relay outputs fault relay NO R2) relay outputs end of starting relay NO R3) relay outputs motor powered NO
Motor Power Kw
15 kW 400 V for severe applications 15 kW 440 V for severe applications 22 kW 500 V for standard applications 22 kW 525 V for standard applications 22 kW 660 V for severe applications 22 kW 690 V for severe applications 30 kW
Maximum Horse Power Rating
10 hp 208 V for standard applications 10 hp 230 V for severe applications 20 hp 460 V for severe applications 25 hp 460 V for standard applications 25 hp 575 V for severe applications 30 hp 575 V for standard applications 7.5
