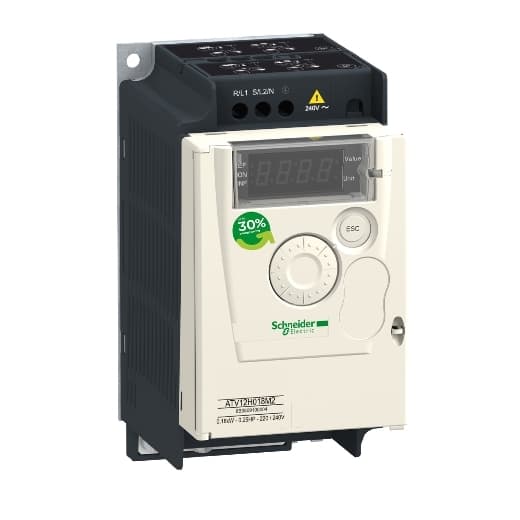

ATV12H018M2TQ Schneider Electric Industrial Automation Components

Product Details

• Product Destination
  Asynchronous motors
• Maximum Horse Power Rating
  0.25 hp
• Physical Interface
  2-wire RS 485 for Modbus
• Tightening Torque
  7.08 lbf.in (0.8 N.m)
• Phase
  1 phase
• Range Of Product
  Altivar 12
• Noise Level
  0 dB
• Operating Position
  Vertical +/- 10 degree
• Speed Drive Output Frequency
  0.5…400 Hz
• Analogue Input Number
  1
• Discrete Output Number
  2
• Nominal Switching Frequency
  4 kHz
• Discrete Input Type
  Programmable LI1...LI4 24 V 18...30 V
• Minimum Switching Current
  5 mA 24 V DC logic relay
• Width
  2.83 in (72 mm)
• Quantity Per Set
  Set of 14
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Built-In Fan
  Without
• Prospective Line Isc
  1 kA
• Electrical Connection
  Terminal 3.5 mm², AWG 12 L1, L2, L3, U, V, W, PA, PC)
Analogue Output Number
1
Time Constant
20 ms +/- 1 ms for reference change
Assembly Style
On base plate
Braking Torque
Up to 70 % of nominal motor torque without braking resistor
Motor Starter Type
Variable speed drive
Transmission Frame
RTU for Modbus
Output Voltage
200...240 V 3 phase
Linearity Error
+/- 0.3 % of maximum value analogue input
Insulation
Electrical between power and control
Marking
CE
Product Or Component Type
Variable speed drive
Motor Power Kw
0.18 kW
IP Degree Of Protection
IP20 without blanking plate on upper part
Continuous Output Current
1.4 A 4 kHz
Communication Port Protocol
Modbus
Product Specific Application
Simple machine
Supply Frequency
50/60 Hz +/- 5 %
Height
5.63 in (143 mm)
Maximum Transient Current
2.1 A 60 s
EMC Filter
Integrated
Speed Range
1…20
Number Of Addresses
1…247 Modbus
Braking To Standstill
By DC injection, <30 s
Net Weight
1.54 lb(US) (0.7 kg)
Component Name
ATV12
Transient Overtorque
150…170 % of nominal motor torque depending on drive rating and type of motor
Connector Type
1 RJ45 (on front face) for Modbus
Discrete Input Number
4
Depth
4.02 in (102.2 mm)
Sampling Duration
20 ms +/- 1 ms logic input 10 ms analogue input
Frequency Resolution
Analog input converter A/D, 10 bits Display unit 0.1 Hz
Switching Frequency
2...16 kHz adjustable 4...16 kHz with derating factor
Discrete Input Logic
Negative logic (sink), > 16 V, < 10 V 3.5 kOhm Positive logic (source), 0...< 5 V, > 11 V
Motor Slip Compensation
Adjustable Preset in factory
Line Current
3.4 A 200 V 2.8 A 240 V
Analogue Output Type
AO1 software-configurable voltage 0...10 V 470 Ohm 8 bits AO1 software-configurable current 0...20 mA 800 Ohm 8 bits
Discrete Output Type
Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O
Supply
Internal supply for reference potentiometer 5 V DC 4.75…5.25 V), <10 mA overload and short-circuit protection Internal supply for logic inputs 24 V DC 20.4…28.8 V), <100 mA overload and short-circuit protection
Variable Speed Drive Application Selection
Commercial equipment Mixer Commercial equipment Other application Textile Ironing
Asynchronous Motor Control Profile
Quadratic voltage/frequency ratio Voltage/frequency ratio (V/f) Sensorless flux vector control
Acceleration And Deceleration Ramps
S U Linear from 0 to 999.9 s
Analogue Input Type
Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm
Transmission Rate
4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s
Maximum Switching Current
2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
Communication Service
Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43)
Protection Type
Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the d
