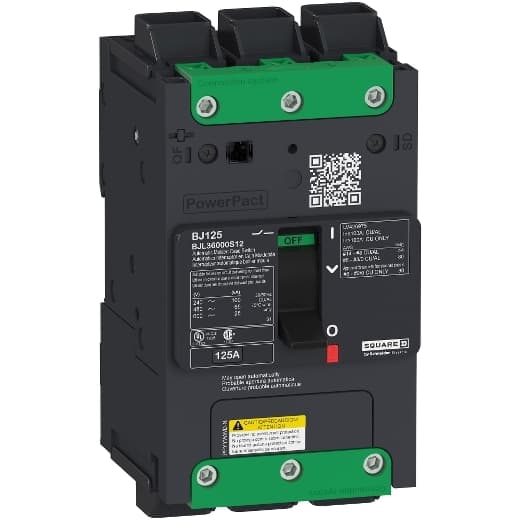

BDL36000S12 Schneider Electric Industrial Automation Components

Product Details

• Quantity Per Set
  Set of 1
• [Ue] Rated Operational Voltage
  600Y/347 V AC 50/60 Hz UL 489
• Local Signalling
  for presence of auxiliary contacts flag (green)
• Height
  5.39 in (137 mm)
• Line Rated Current
  125 A
• Magnetic Tripping Current
  1320 A
• Width
  3.19 in (81 mm)
• Breaking Capacity Code
  D
• Electrical Durability
  10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
• Product Name
  PowerPact B
• Power Wire Stripping Length
  0.79 in (20 mm)
• Mechanical Durability
  15000 cycles IEC 947-1 Annex K ed 5.2
• Device Application
  Distribution
• Range
  PowerPact
• Magnetic Hold Current
  880 A
• Color
  Grey (RAL 7016)
• Number Of Poles
  3P
• Connection Pitch
  1.06 in (27 mm)
• 9 Mm Pitches
  9
• Depth
  3.50 in (89 mm)
Control Type
Toggle
Product Or Component Type
Automatic switch
Contact Position Indicator
Yes
Electrical Connection
Everlink lug line Everlink lug load
Mounting Mode
Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
AWG Gauge
AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Tightening Torque
44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…10 mm²) 79.66 lbf.in (9 N.m) 0.02…0.15 in² (16…95 mm²)
Number Of Slots
1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
Short-Circuit Withstand
25 kA 208Y/120 V UL 489 25 kA 240 V UL 489 18 kA 480Y/277 V UL 489 18 kA 480 V UL 489 14 kA 600 V UL 489
