BDL36035LU Schneider Electric Industrial Automation Components

BDL36035LU on Powermatic Associates
Schneider Electric

Part#:BDL36035LU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

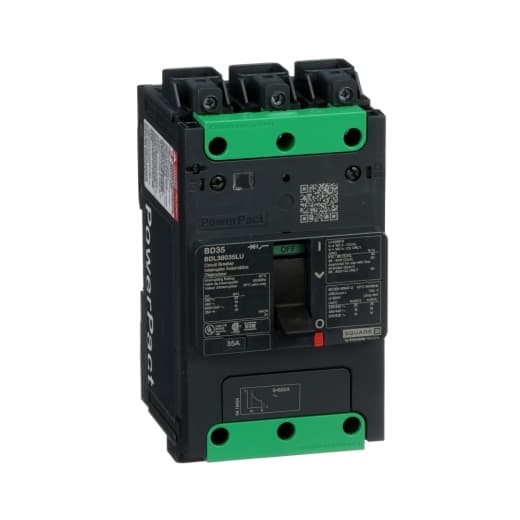

Square D by Schneider Electric BDL36035LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 35A 600Y/347Vac 14kA design. It includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only, offering a degree of protection of IP40. This MCCB has a rated current of 35A and operates at a rated voltage of 600Vac 600Y/347Vac, with a mechanical durability of 20,000 operations when mounted either on a DIN rail or as an individual unit on a plate. It is a 3-pole (3P) device with dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The utilisation category is A, and it features over-current protection fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it provides thermal and magnetic protection functions. The trip current rating is 35 AT, with an electrical durability of 10,000 operations at 440Vac; In. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. Its short circuit breaking rating varies with voltage, achieving 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac under UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Control Type
    Toggle
  • Connection Pitch
    1.06 in (27 mm)
  • Quantity Per Set
    Set of 1
  • Device Application
    Distribution
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • Device Short Name
    BD 035
  • Utilisation Category
    Category A
  • Protected Poles Description
    3t
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Depth
    3.15 in (80 mm)
  • Product Name
    PowerPact B
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Width
    3.19 in (81 mm)
  • Product Or Component Type
    Circuit breaker
  • Color
    Grey (RAL 7016)
  • Range
    PowerPact
  • Trip Unit Technology
    Thermal-magnetic
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Number Of Poles
    3P
  • Trip Unit Name
    TM-D
  • Line Rated Current
    35 A
  • Breaking Capacity Code
    D
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Continuous Current Rating
    80 %
  • Height
    5.39 in (137 mm)
  • 9 Mm Pitches
    9
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36035LU on Powermatic Associates is $1,090.00. Order now.

BDL36035LU Related Documents

Product Datasheet-1631033788463.pdfCatalog-1631033788474.pdfInstruction Sheet-1631033788477.pdf
