Product description

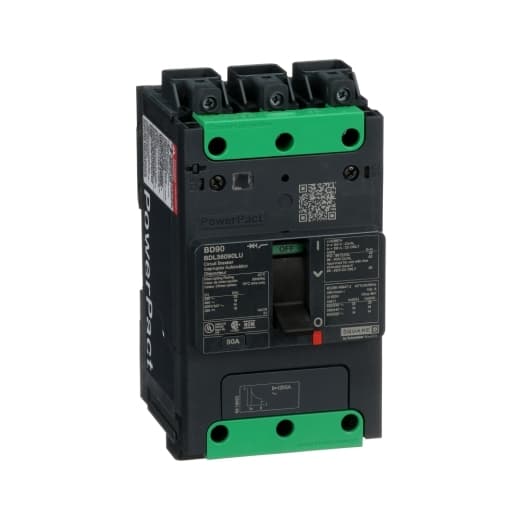

Square D by Schneider Electric BDL36090LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 90A design for 600Y/347Vac with a 14kA breaking capacity and Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. It has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and a rated current of 90A. The MCCB operates at a rated voltage of 600Vac 600Y/347Vac, with a mechanical durability of 20,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It features 3 poles (3P), with dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. The utilisation category is A, and it offers protection settings for over-current fixed at 90A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it provides thermal and magnetic protection functions. The trip current rating is 90 AT, with an electrical durability of 10,000 operations at 440Vac; In, and a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac, 18kA at 480Y/277Vac, 14kA at 600Y/347Vac, and 10kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Quantity Per Set
    Set of 1
  • Depth
    3.15 in (80 mm)
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • Color
    Grey (RAL 7016)
  • Height
    5.39 in (137 mm)
  • Width
    3.19 in (81 mm)
  • 9 Mm Pitches
    9
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Utilisation Category
    Category A
  • Connection Pitch
    1.06 in (27 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Name
    TM-D
  • Trip Unit Technology
    Thermal-magnetic
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Continuous Current Rating
    80 %
  • Breaking Capacity Code
    D
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BD 090
  • Range
    PowerPact
  • Product Name
    PowerPact B
  • Protected Poles Description
    3t
  • Number Of Poles
    3P
  • Device Application
    Distribution
  • Line Rated Current
    90 A
  • Control Type
    Toggle

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36090LU on Powermatic Associates is $1,959.00. Order now.
