BGA140153 Schneider Electric Industrial Automation Components

Product Details

• Product Name

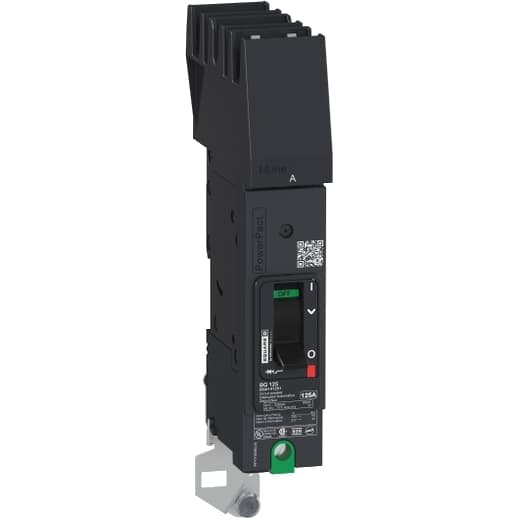

  PowerPact B
• [Ue] Rated Operational Voltage
  240 V AC 50/60 Hz UL 489
• Mounting Height
  1.50 in (38.1 mm)
• Net Weight
  1.41 lb(US) (0.6375 kg)
• Breaking Capacity Code
  G
• AWG Gauge
  AWG 14...AWG 2/0 aluminium/copper
• Depth
  3.50 in (89 mm)
• Continuous Current Rating
  80 %
• Line Rated Current
  15 A
• Local Signalling
  for presence of auxiliary contacts flag (green)
• Width
  1.06 in (27 mm)
• Mounting Mode
  I-Line
• Control Type
  Toggle
• Height
  5.39 in (137 mm)
• [Uimp] Rated Impulse Withstand Voltage
  8 kV IEC 60947-2
• Range
  PowerPact
• Suitability For Isolation
  Yes IEC 60947-2
• Quantity Per Set
  Set of 1
• Product Or Component Type
  Circuit breaker
• Utilisation Category
  Category A
Power Wire Stripping Length
0.79 in (20 mm)
Phase Connection
B
Device Application
Distribution
Trip Unit Technology
Thermal-magnetic
Connection Pitch
1.06 in (27 mm)
9 Mm Pitches
3
Number Of Poles
1P
[Ui] Rated Insulation Voltage
800 V IEC 60947-2
Mechanical Durability
20000 cycles IEC 947-1 Annex K ed 5.2
Color
Grey (RAL 7016)
Device Short Name
BG 015
Electrical Durability
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
[Ics] Rated Service Breaking Capacity
65 kA 220...240 V AC 50/60 Hz IEC 60947-2
Electrical Connection
I-Line connection line Lugs load
Tightening Torque
31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Breaking Capacity
65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
