BGF16035 Schneider Electric Electronic Components

BGF16035 on Powermatic Associates
Schneider Electric

Part#:BGF16035

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

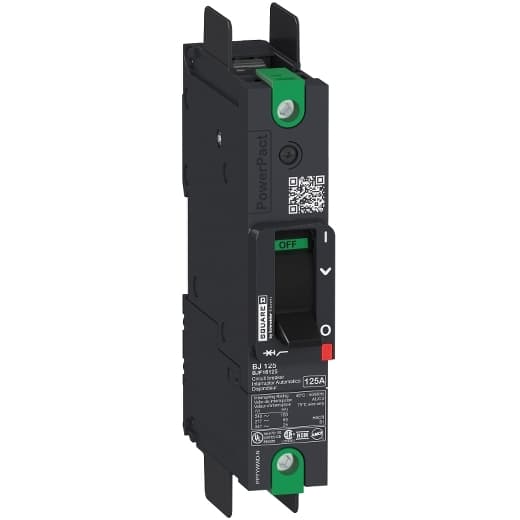

Square D by Schneider Electric BGF16035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 1P-1t 35A design for 600Y/347Vac with an 18kA terminal nut at 80% rated capacity. It has a rated impulse voltage (Uimp) of 8 kV and utilizes a terminal nut kit for fixed busbar connection on both line and load sides. The device offers an IP40 degree of protection and supports a rated current of 35A with a rated voltage (AC) of 600Vac 600Y/347Vac. It is designed for mechanical durability up to 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 1-pole (1P) circuit breaker measures 137 mm in height, 80 mm in depth, and 27 mm in width. It falls under utilisation category A and provides protection settings including over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. It offers thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 35 AT. The electrical durability with load is rated for 10,000 operations at 240Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all in accordance with UL489. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Quantity Per Set
    Set of 1
  • Net Weight
    1.01 lb(US) (0.46 kg)
  • Height
    5.39 in (137 mm)
  • 9 Mm Pitches
    3
  • Color
    Gray RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Depth
    3.15 in (80 mm)
  • Width
    1.06 in (27 mm)
  • Electrical Connection
    Terminal nut ON and OFF end
  • Connection Pitch
    1.06 in (27 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 In
  • Continuous Current Rating
    80 %
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex F ed 5.2
  • Utilisation Category
    Category A
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Trip Unit Name
    TM-D
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity Code
    G
  • Number Of Poles
    1P
  • Product Name
    PowerPact B
  • Line Rated Current
    35 A
  • Device Application
    Distribution
  • Control Type
    Toggle
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BG 035
  • Protected Poles Description
    1t
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BGF16035 on Powermatic Associates is $477.00. Order now.

BGF16035 Related Documents

Catalog-1631033485844.pdfInstruction Sheet-1631033485838.pdfProduct Datasheet-1631033485842.pdf
