BGF36040 Schneider Electric Industrial Automation Components

Name: BGF36040
Brand: Schneider Electric
Price: 1344 USD
Availability: BackOrder

Part#:BGF36040

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

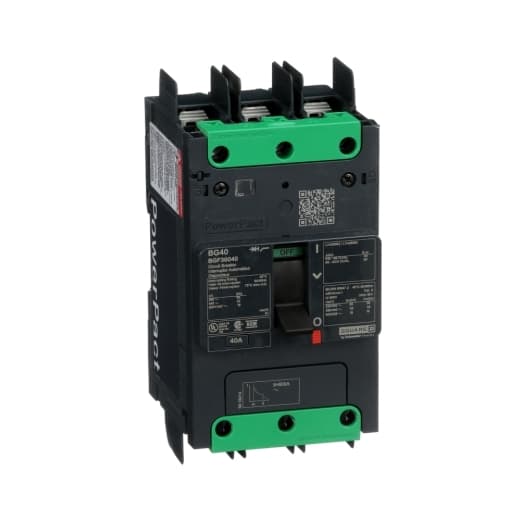

Square D by Schneider Electric BGF36040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design with a rated current of 40A and a rated voltage of 600Vac 600Y/347Vac. The breaker is equipped with a term. nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has a net height of 137 mm, a net depth of 80 mm, and a net width of 81 mm. It operates with a rated impulse voltage (Uimp) of 8 kV and has protection settings including over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It provides thermal and magnetic protection, with a trip current rating of 40 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, up to 65kA at 240Vac and 20kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

Breaking Capacity
65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489
[Ics] Rated Service Breaking Capacity
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2
Number Of Slots
1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
Mounting Mode
Clip-on 35 mm symmetrical DIN rail) By screws plate)
AWG Gauge
AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
Tightening Torque
44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
Quantity Per Set
Set of 1
Height
5.39 in (137 mm)
Local Signalling
for presence of auxiliary contacts flag (green)
Net Weight
2.04 lb(US) (0.924 kg)
Depth
3.15 in (80 mm)
Width
3.19 in (81 mm)
Color
Gray RAL 7016)
Power Wire Stripping Length
0.79 in (20 mm)
9 Mm Pitches
9
Electrical Connection
Terminal nut ON and OFF end
Electrical Durability
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Connection Pitch
1.06 in (27 mm)
Mechanical Durability
15000 cycles IEC 947-1 Annex K ed 5.2
Utilisation Category
Category A

Suitability For Isolation

Yes IEC 60947-2

[Ui] Rated Insulation Voltage

800 V IEC 60947-2

Trip Unit Name

TM-D

Continuous Current Rating

80 %

[Uimp] Rated Impulse Withstand Voltage

8 kV IEC 60947-2

Breaking Capacity Code

Trip Unit Technology

Thermal-magnetic

[Ue] Rated Operational Voltage

525 V AC 50/60 Hz UL 489

Device Application

Distribution

Control Type

Toggle

Range

PowerPact

Product Or Component Type

Circuit breaker

Product Name

PowerPact B

Line Rated Current

40 A

Protected Poles Description

Device Short Name

BG 040

Number Of Poles

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
