CAD506BL Schneider Electric Industrial Automation Components

CAD506BL on Powermatic Associates
Schneider Electric

Part#:CAD506BL

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

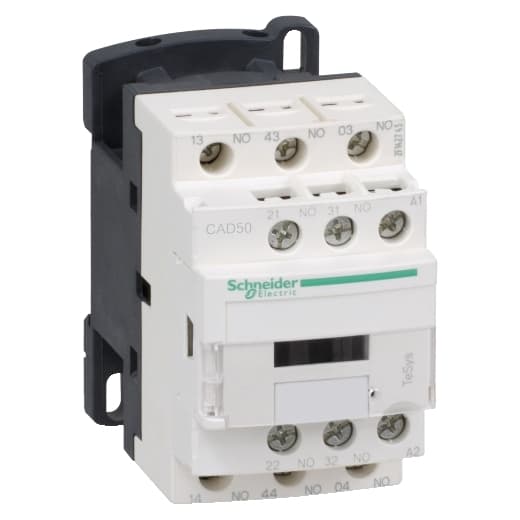

Schneider Electric CAD506BL is a plate DIN rail-mounted automation part featuring lugs-ring type terminals for secure connections. It is designed with SPST-NO (Single Pole Single Throw - Normally Open) contacts, totaling five in number, to facilitate straightforward circuit control. This component is characterized by a mechanical durability of 30,000,000 operations at no load, ensuring longevity in repetitive tasks. It falls under the utilisation categories of AC-14, AC-15, and DC-13, making it versatile for various electrical applications. With an operating rate of 10,800 cycles per hour, it supports a high frequency of operations within its design parameters.

Product Details

  • Range
    TeSys
  • Pole Contact Composition
    5 NO
  • Control Circuit Type
    DC low consumption
  • Time Constant
    40 ms
  • Product Or Component Type
    Control relay
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Hold-In Power Consumption In W
    2.4 W 68 °F (20 °C)
  • Device Short Name
    CAD
  • [Uc] Control Circuit Voltage
    24 V DC
  • Connections - Terminals
    lugs-ring terminals 0.31 in (8 mm))
  • Insulation Resistance
    > 10 MOhm
  • [Ue] Rated Operational Voltage
    <= 690 V AC 25...400 Hz
  • Maximum Operating Rate
    180 cyc/mn
  • Net Weight
    1.28 lb(US) (0.58 kg)
  • Mechanical Durability
    30 Mcycles
  • Minimum Switching Current
    5 mA
  • Product Name
    TeSys CAD
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C)
  • Inrush Power In W
    2.4 W 68 °F (20 °C))
  • Height
    3.03 in (77 mm)
  • Contactor Application
    Control circuit
  • Minimum Switching Voltage
    17 V
  • Width
    1.77 in (45 mm)
  • Depth
    3.66 in (93 mm)
  • Associated Fuse Rating
    10 A gG IEC 60947-5-1
  • Mounting Support
    Rail Plate
  • Operating Time
    65...88 ms coil energisation and NO closing 14...25 ms coil de-energisation and NO opening
  • Irms Rated Making Capacity
    140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
  • Non-Overlap Time
    1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
  • [Ui] Rated Insulation Voltage
    600 V UL 600 V CSA 690 V IEC 60947-5-1
  • Utilisation Category
    AC-14 DC-13 AC-15
  • [Icw] Rated Short-Time Withstand Current
    100 A - 1 s 120 A - 500 ms 140 A - 100 ms
  • Control Circuit Voltage Limits
    0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC 0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
  • Mechanical Robustness
    Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CAD506BL on Powermatic Associates is $147.74. Order now.
