CHU362DSWC Schneider Electric Electronic Components

CHU362DSWC on Powermatic Associates
Schneider Electric

Part#:CHU362DSWC

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

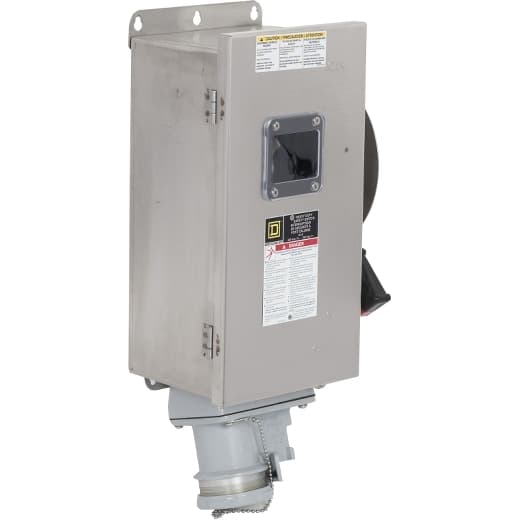

Safety switch, heavy duty, non fusible, 60A, 600 VAC/VDC, 3 poles, 60 hp, NEMA 4, 4X, 5, 304 stl, crouse hindsreceptacle

Product Details

  • Short Circuit Current Rating
    10 kA
  • Width
    10.79 in (274.07 mm)
  • Product
    Receptacle Switch
  • Electrical Connection
    Receptacle
  • Depth
    5.11 in (129.79 mm)
  • Enclosure Rating
    NEMA 3/3R/4/4X/5/12 stainless steel 304
  • Current Rating
    60 A
  • Wire Configuration
    4-wire
  • Disconnect Type
    Non-fusible disconnect
  • Voltage Rating
    600 V AC/DC
  • For Use With
    Wiring connection APJ6485 Crouse-Hinds Arktite
  • Number Of Poles
    3
  • Phase
    3 phase
  • Range
    Square D
  • Certifications
    CSA
  • Height
    16.87 in (428.50 mm)
  • Mounting Type
    Surface
  • Horsepower Rating
    50 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 60 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
  • Wire Size
    AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper
  • Tightening Torque
    50 lbf.in (5.65 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.65 N.m) 0.00…0.01 in² (2.06…5.21 mm²) (AWG 14...AWG 10)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CHU362DSWC on Powermatic Associates is $4,325.00. Order now.

CHU362DSWC Related Documents

Product Datasheet-1631033186181.pdfInstruction Sheet-1631033186174.pdfCatalog-1631033186190.pdf
