Schneider Electric

Part#:DF82

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

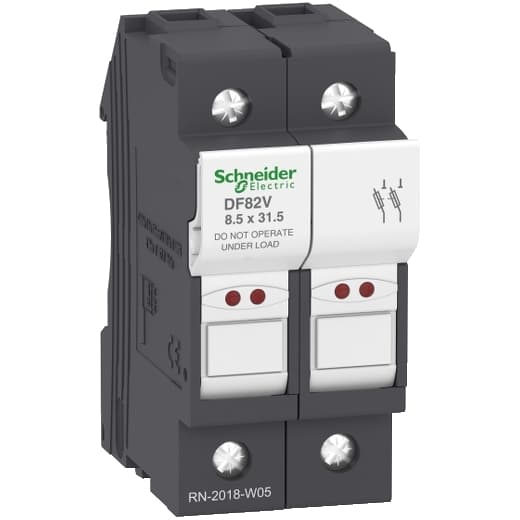

Schneider Electric - DF82

Product Details

  • Control Type
    Toggle padlockable
  • [Ui] Rated Insulation Voltage
    500 V AC
  • Height
    3.13 in (79.5 mm)
  • Width
    1.38 in (35 mm)
  • Device Short Name
    DF8
  • Utilisation Category
    AC-20B IEC 60947-3
  • Net Weight
    0.19 lb(US) (0.085 kg)
  • Product Name
    TeSys DF
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV
  • Mounting Support
    35 mm symmetrical DIN rail
  • Mounting Position
    Vertical +/- 23°)
  • [Ith] Conventional Free Air Thermal Current
    25 A 68 °F (20 °C)
  • Range
    TeSys
  • [Ie] Rated Operational Current
    25 A 400 V AC
  • Quantity Per Set
    Set of 6
  • Poles Description
    2P
  • Overvoltage Category
    III
  • Fuse Size
    8.3 x 31.5 mm
  • Depth
    2.40 in (61 mm)
  • [Ue] Rated Operational Voltage
    400 V AC
  • Power Dissipation In W
    2.5 W maximum power dissipation by fuse
  • Product Or Component Type
    Fuse carrier
  • Short-Circuit Withstand
    20 kA 400 V IEC 60947-3
  • Fuse Type
    , gG , aM
  • Standards
    EN/IEC 60947-3 EN/IEC 60269-2
  • Product Compatibility
    DF2BA fuse cartridge DF2BN fuse cartridge
  • Tightening Torque
    19.47 lbf.in (2.2 N.m) PZ2 19.47 lbf.in (2.2 N.m) flat Ø 5.5 mm
  • Product Certifications
    IEC EAC DNV-GL
  • Connections - Terminals
    screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)rigid screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)rigid screw clamp terminals 1 0.00…0.02 in² (1…16 mm²)flexible with or without screw clamp terminals 2 0.00…0.01 in² (1…6 mm²)flexible w

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF82 on Powermatic Associates is $26.05. Order now.
