Powermatic Associates Logo

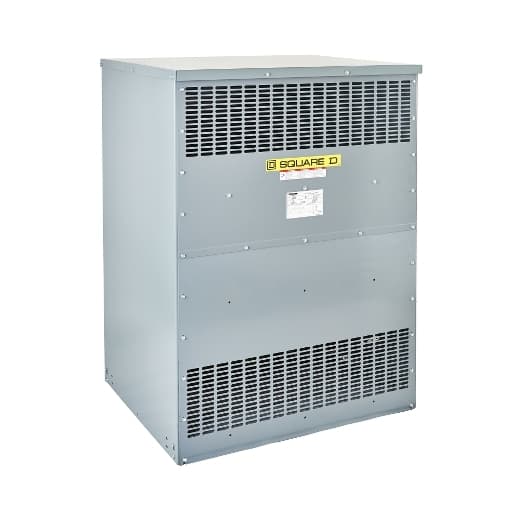

EX500T68HFCU Schneider Electric Industrial Automation Components

EX500T68HFCU on Powermatic Associates
Schneider Electric

Part#:EX500T68HFCU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - EX500T68HFCU

Product Details

  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS30J UL type 3R, with 7400WS30J
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 6 Hole Nema Pad secondary 0.44 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Number Of Tap-Offs
    2 2.5 % FCAN 2 2.5 % FCBN
  • Mounting Support
    Floor Floor, with 7400FMB
  • Temperature Rise
    115 °C 220 °C insulated
  • Sound Level
    6 dB NEMA ST-20 56 dB
  • Net Weight
    3705.00 lb(US) (1680.56 kg)
  • Width
    48.27 in (1226 mm)
  • Basic IMP Level (BIL)
    10 kV
  • Depth
    37.91 in (963 mm)
  • Let Through Current
    29.2 kA
  • Secondary Voltage
    208Y/120 V
  • Height
    70.98 in (1803 mm)
  • Coil Material
    Copper
  • Primary Voltage
    480 V delta
  • Device Application
    Low voltage electrical distribution
  • Phase
    3 phase
  • Range Of Product
    Square D
  • Rated Operational Power In VA
    500 kVA
  • Type Of Cooling
    Natural convection
  • Network Frequency
    60 Hz
  • Device Short Name
    DOE 2016
  • Transformer Type
    Energy efficient
  • Product Or Component Type
    DOE 2016 energy efficient transformer

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EX500T68HFCU on Powermatic Associates is $43,749.00. Order now.

EX500T68HFCU Related Documents

Product Datasheet-1631034672819.pdfCatalog-1631034672822.pdf
