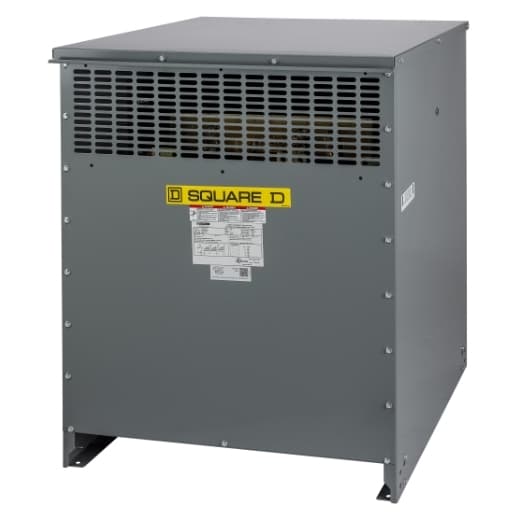

EXN112T3155H Schneider Electric Industrial Automation Components

Product Details

• %IZ
  3.78 %
• Transformer Type
  Energy efficient
• DOE Efficiency
  98.77 % at 35 % load factor , 167 °F (75.0 °C)
• Width
  31.30 in (795 mm)
• Network Frequency
  60 Hz
• Secondary Voltage
  480Y/277 V
• Depth
  28.43 in (722 mm)
• Device Short Name
  DOE 2016
• Primary Operational Current
  270.63 A 135.32 A 112.5 kVA
• X/R Ratio
  1.43
• Number Of Mounting Holes
  0.51 in (13 mm)
• Rated Operational Power In VA
  112.5 kVA
• Height
  37.52 in (953 mm)
• Phase
  3 phase
• Net Weight
  735.00 lb(US) (333.39 kg)
• Type Of Cooling
  Natural convection
• %IX
  3.02 %
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Box Number
  21M
• Basic IMP Level (BIL)
  10 kV
Let Through Current
3.69 kA
Range Of Product
Square D
Primary Voltage
208 V delta
Coil Material
Aluminium
Inrush Current
3031 A
Device Application
Low voltage electrical distribution
Sound Level
47 dB 6 dB NEMA ST-20
Temperature Rise
150 °C 220 °C insulated
Degree Of Protection
UL type 2 UL type 3R, with 7400WS21M
Transformer Losses
221 no load (core loss) 2683 load loss (coil loss)
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - HO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
Transformer BTU/HR
1008 16.6 % 1326 25 % 3043 50 % 5904 75 % 9909 100 %
