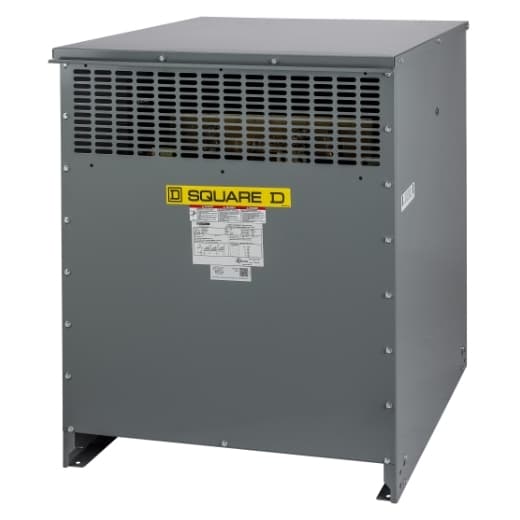

EXN112T3HB Schneider Electric Industrial Automation Components

Product Details

• Network Frequency
  60 Hz
• Coil Material
  Aluminium
• Net Weight
  949.00 lb(US) (430.46 kg)
• %IX
  2.19 %
• Phase
  3 phase
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Device Application
  Low voltage electrical distribution
• Secondary Voltage
  208Y/120 V
• X/R Ratio
  1.75
• Box Number
  21M
• Number Of Mounting Holes
  0.51 in (13 mm)
• Rated Operational Power In VA
  112.5 kVA
• Basic IMP Level (BIL)
  10 kV
• Let Through Current
  12.29 kA
• Transformer Type
  Energy efficient
• Height
  37.52 in (953 mm)
• DOE Efficiency
  98.79 % at 35 % load factor , 167 °F (75.0 °C)
• Depth
  28.43 in (722 mm)
• Range Of Product
  Square D
• Type Of Cooling
  Natural convection
Device Short Name
DOE 2016
Primary Voltage
480 V delta
%IZ
2.54 %
Width
31.30 in (795 mm)
Primary Operational Current
135.32 A 312.27 A 112.5 kVA
Inrush Current
1912 A
Temperature Rise
80 °C 220 °C insulated
Transformer Losses
309 no load (core loss) 1507 load loss (coil loss)
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Degree Of Protection
UL type 2 UL type 3R, with 7400WS21M
Sound Level
47 dB 3 dB NEMA ST-20
Electrical Connection
4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
Transformer BTU/HR
1197 16.6 % 1376 25 % 2340 50 % 3947 75 % 6196 100 %
