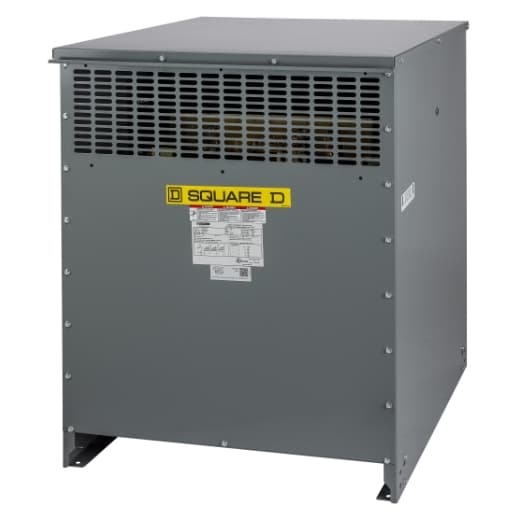

EXN112T3HNLP Schneider Electric Industrial Automation Components

Product Details

• Transformer BTU/HR
  1015 16.6 % 1316 25 % 2942 50 % 5652 75 % 9445 100 %
• Mounting Support
  Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
• Electrical Connection
  4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
• Temperature Rise
  150 °C 220 °C insulated
• Transformer Losses
  227 no load (core loss) 2541 load loss (coil loss)
• Degree Of Protection
  UL type 2 UL type 3R, with 7400WS21M
• Number Of Tap-Offs
  2 2.5 % FCAN 4 2.5 % FCBN
• Sound Level
  47 dB 3 dB NEMA ST-20
• Number Of Mounting Holes
  0.51 in (13 mm)
• Net Weight
  802.00 lb(US) (363.78 kg)
• Width
  31.30 in (795 mm)
• Depth
  28.43 in (722 mm)
• Height
  37.52 in (953 mm)
• %IX
  3.00 %
• X/R Ratio
  1.72
• Let Through Current
  8.44 kA
• DOE Efficiency
  98.79 % at 35 % load factor , 167 °F (75.0 °C)
• %IZ
  3.70 %
• Inrush Current
  1444 A
• Secondary Voltage
  208Y/120 V
Coil Material
Aluminium
Basic IMP Level (BIL)
10 kV
Primary Operational Current
135.32 A 312.27 A 112.5 kVA
Primary Voltage
480 V delta
Type Of Cooling
Natural convection
Network Frequency
60 Hz
Box Number
21M
Rated Operational Power In VA
112.5 kVA
Phase
3 phase
Device Application
Low voltage electrical distribution
Transformer Type
Energy efficient
Range Of Product
Square D
Device Short Name
DOE 2016
Product Or Component Type
DOE 2016 energy efficient transformer
