EXN15T3HCUNLP Schneider Electric Industrial Automation Components

EXN15T3HCUNLP on Powermatic Associates
Schneider Electric

Part#:EXN15T3HCUNLP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

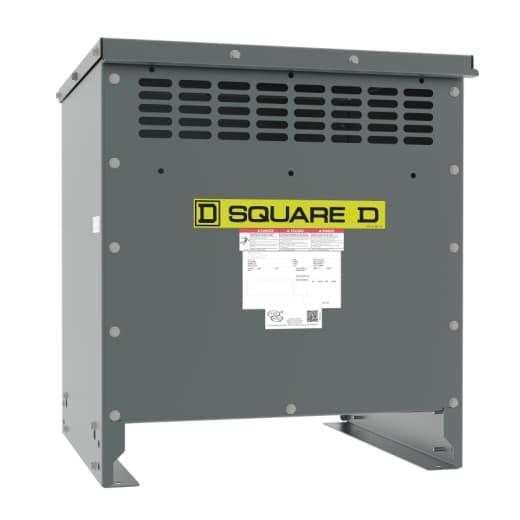

Schneider Electric - EXN15T3HCUNLP

Product Details

  • Rated Operational Power In VA
    15 kVA
  • Primary Operational Current
    144.34 A 416.36 A 150 kVA
  • Basic IMP Level (BIL)
    10 kV
  • Network Frequency
    60 Hz
  • %IZ
    4.96 %
  • Type Of Cooling
    Natural convection
  • %IX
    3.51 %
  • Box Number
    17M
  • Coil Material
    Copper
  • Height
    23.98 in (609 mm)
  • Inrush Current
    220 A
  • Device Application
    Low voltage electrical distribution
  • DOE Efficiency
    98.05 % at 35 % load factor , 167 °F (75.0 °C)
  • Width
    21.50 in (546 mm)
  • Phase
    3 phase
  • Device Short Name
    DOE 2016
  • Secondary Voltage
    208Y/120 V
  • X/R Ratio
    1.23
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Range Of Product
    Square D
  • Depth
    21.18 in (538 mm)
  • Transformer Type
    Energy efficient
  • Primary Voltage
    480 V delta
  • Let Through Current
    0.84 kA
  • Net Weight
    234.99 lb(US) (106.59 kg)
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS22M
  • Sound Level
    6 dB NEMA ST-20 39 dB
  • Temperature Rise
    150 °C 220 °C insulated
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Transformer Losses
    51 no load (core loss) 533 load loss (coil loss)
  • Electrical Connection
    2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
  • Transformer BTU/HR
    225 16.6 % 288 25 % 629 50 % 1197 75 % 1993 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN15T3HCUNLP on Powermatic Associates is $6,132.00. Order now.
