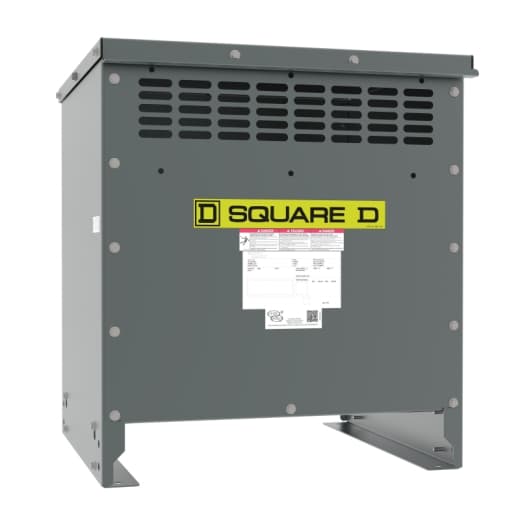

EXN15T6H Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Square D
• Network Frequency
  60 Hz
• Let Through Current
  0.77 kA
• DOE Efficiency
  98.02 % at 35 % load factor , 167 °F (75.0 °C)
• Basic IMP Level (BIL)
  10 kV
• Width
  21.50 in (546 mm)
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Secondary Voltage
  240 V delta
• Box Number
  17M
• Height
  23.98 in (609 mm)
• Depth
  21.18 in (538 mm)
• Device Application
  Low voltage electrical distribution
• Rated Operational Power In VA
  15 kVA
• Coil Material
  Aluminium
• Net Weight
  192.99 lb(US) (87.54 kg)
• Phase
  3 phase
• %IX
  2.97 %
• %IZ
  4.70 %
• Device Short Name
  DOE 2016
• Type Of Cooling
  Natural convection
Primary Operational Current
18.04 A 36.08 A 15 kVA
X/R Ratio
0.98
Transformer Type
Energy efficient
Primary Voltage
480 V delta
Inrush Current
195 A
Number Of Mounting Holes
0.51 in (13 mm)
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Electrical Connection
2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
Sound Level
6 dB NEMA ST-20 39 dB
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Temperature Rise
150 °C 220 °C insulated
Transformer Losses
51 no load (core loss) 555 load loss (coil loss)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB17M Wall, with 7400WMB17M
Transformer BTU/HR
227 16.6 % 292 25 % 647 50 % 1239 75 % 2068 100 %
