EZM3600CBNBBTL Schneider Electric Electronic Components

EZM3600CBNBBTL on Powermatic Associates
Schneider Electric

Part#:EZM3600CBNBBTL

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

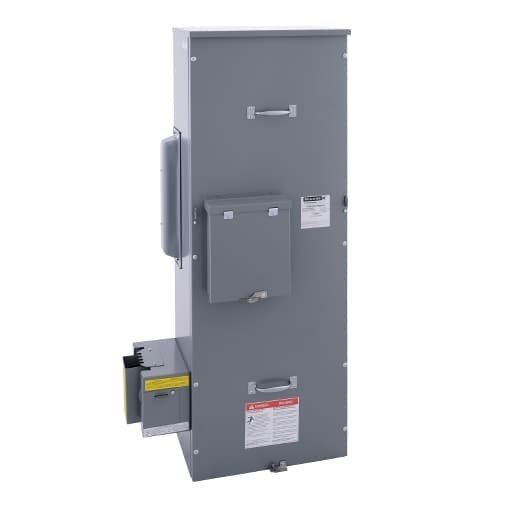

Square D by Schneider Electric EZM3600CBNBBTL is a meter center main unit designed for indoor installation, featuring a steel enclosure and aluminium busbar. It measures H1370mm x W474mm x D290mm (H53.93" x W18.66" x D11.41") and operates on a rated voltage of 208Y/120Vac and 240/120Vac (Delta). This unit is equipped for three-phase (3PH-4W) networks, with a main and busbar rated current of 600A. It includes a busway tap circuit breaker metering center main unit with a neutral back position, and connections include neutral lugs on the back and a busway connection on the left side.

Product Details

  • Product Or Component Type
    Meter center main unit
  • Wiring Configuration
    4-wire
  • Included Items
    Circuit breaker 1) 3P 600 A 65 kA
  • Type Of Installation
    Indoor
  • Main Type
    Main Circuit Breaker
  • Height
    53.93 in (1369.82 mm)
  • Bus Rated Current
    600 A
  • Material
    Aluminium busbar
  • Main Rated Current
    600 A
  • Depth
    11.41 in (289.81 mm)
  • Width
    18.66 in (473.96 mm)
  • Range Of Product
    EZ meter-pak
  • Number Of Phases
    3 phase
  • Electrical Connection
    Lugsneutral back Busway left side

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM3600CBNBBTL on Powermatic Associates is $12,513.00. Order now.
