Part#:H221NDS

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

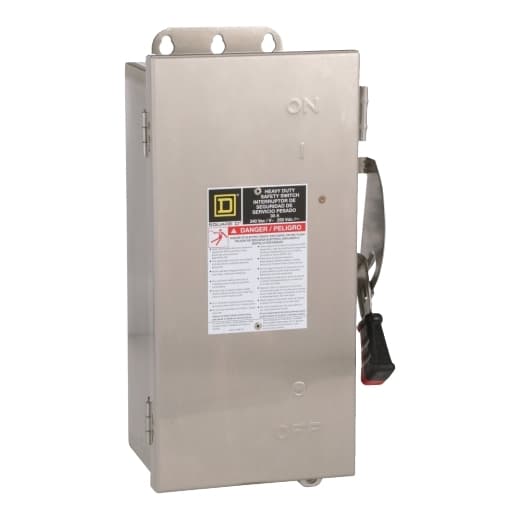

SW FUSIBLE 240V 30A 2P NEMA4 4X 5 SS/WN

Product Details

  • Factory Installed Neutral
    Neutral (factory installed)
  • Electrical Connection
    Lugs
  • Number Of Poles
    2
  • Current Rating
    30 A
  • Product
    Single Throw Safety Switch
  • Depth
    5.11 in (129.79 mm)
  • Device Application
    Heavy application
  • Net Weight
    13.23 lb(US) (6 kg)
  • Phase
    3 phase
  • Height
    14.93 in (379.22 mm)
  • Disconnect Type
    Fusible disconnect
  • Enclosure Rating
    NEMA 4/4X/5 stainless steel 304
  • Width
    7.22 in (183.39 mm)
  • Wiring Configuration
    3-wire
  • Duty Rating
    Heavy duty
  • Mounting Type
    Surface
  • Voltage Rating
    250 V DC 240 V AC
  • Short Circuit Current Rating
    10 kA H or K 200 kA R, J or L
  • Wire Size
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Fuse Type
    H or K R, J or L
  • Tightening Torque
    45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8) 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
  • Maximum Horse Power Rating
    1.5 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6 3 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 3 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52 7.5 hp 240 V at AC 50-60 Hz for 3 phase conforming

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
