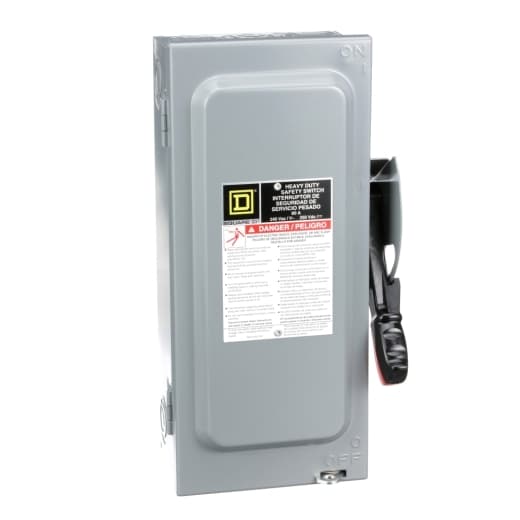

H222N Schneider Electric Electronic Components

Product Details

• Number Of Poles
  2
• Duty Rating
  Heavy duty
• Disconnect Type
  Fusible disconnect
• Enclosure Rating
  NEMA 1 steel
• Current Rating
  60 A
• Height
  14.6 in (370.84 mm)
• Factory Installed Neutral
  Neutral (factory installed)
• Mounting Type
  Surface
• Phase
  3 phase
• Device Application
  Heavy application
• Wiring Configuration
  3-wire
• Electrical Connection
  Lugs
• Product
  Single Throw Safety Switch
• Net Weight
  8.82 lb(US) (4 kg)
• Width
  6.5 in (165.10 mm)
• Depth
  4.88 in (123.95 mm)
• Short Circuit Current Rating
  10 kA H or K 200 kA R, J or L
• Fuse Type
  H or K R, J or L
• Wire Size
  AWG 14...AWG 3 copper AWG 12...AWG 3 aluminium
• Voltage Rating
  250 V DC 240 V AC
Maximum Horse Power Rating
3 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6 7.5 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 10 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52 15 hp 240 V at AC 50-60 Hz for 3 phase conforming
Tightening Torque
50 lbf.in (5.65 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.65 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
