H224N Schneider Electric Electronic Components

H224N on Powermatic Associates
Schneider Electric

Part#:H224N

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

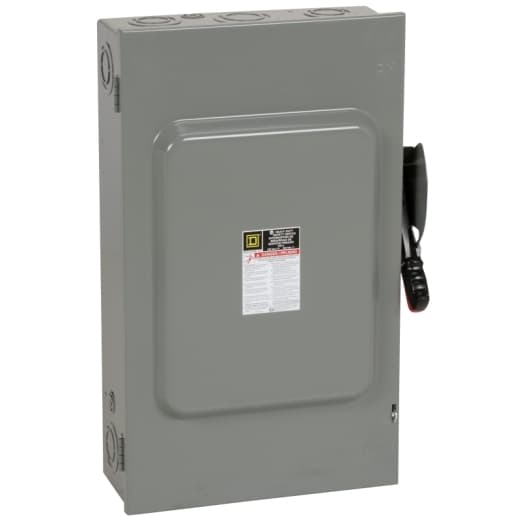

SWITCH FUSIBLE HD 240V 200A 2P NEMA1

Product Details

  • Factory Installed Neutral
    Neutral (factory installed)
  • Depth
    8.25 in (209.55 mm)
  • Current Rating
    200 A
  • Height
    29 in (736.60 mm)
  • Product
    Single Throw Safety Switch
  • Mounting Type
    Surface
  • Net Weight
    53.51 lb(US) (24.27 kg)
  • Wiring Configuration
    3-wire
  • Tightening Torque
    275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil)
  • Phase
    3 phase
  • Wire Size
    AWG 6...250 kcmil copper or aluminium
  • Duty Rating
    Heavy duty
  • Number Of Poles
    2
  • Enclosure Rating
    NEMA 1 steel
  • Disconnect Type
    Fusible disconnect
  • Device Application
    Heavy application
  • Electrical Connection
    Lugs
  • Width
    17.13 in (435.10 mm)
  • Short Circuit Current Rating
    10 kA H or K 200 kA R, J or L
  • Fuse Type
    H or K R, J or L
  • Voltage Rating
    250 V DC 240 V AC
  • Maximum Horse Power Rating
    15 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6 25 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 60 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 40 hp 250 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

H224N Related Documents

Catalog-1631035169171.pdfProduct Datasheet-1631035169174.pdfInstruction Sheet-1631035169169.pdf

Similar products from: Schneider Electric Electronic Components

QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

6 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
H361 on Powermatic Associates

H361

Schneider Electric

Schneider Electric H361 is a switch-disconnector that falls under the Safety Switches (Heavy Duty) sub-range, specifically designed as a General Duty Single Throw Safety Switch (Fused). It features 3 poles and is rated for a current of 30 A. The dimensions of this part are a net height of 371 mm, a net width of 165 mm, and a net depth of 124 mm. It operates via a toggle mechanism. The H361 has a short circuit breaking rating of 10kA maximum with fuse types H or K and can reach up to 200kA maximum with fuse types R, J, or L. It is equipped with lug type terminals and is designed to handle a rated voltage (AC) of 600 V phase-to-phase.

0 in stock
M9U31110 on Powermatic Associates

M9U31110

Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads, falling under the C60H-DC sub-range. It features a single pole configuration and is rated for a current of 10A with a maximum voltage capacity of 500Vdc. This MCB is compliant with UL1077 standards, ensuring its suitability for a variety of applications. It offers a short circuit breaking rating of 5kA AIR at 250Vdc. The M9U31110 is equipped with a D tripping curve, ensuring precise protection for connected circuits by targeting the specific characteristics of DC loads.

1 in stock
BJF36035 on Powermatic Associates

BJF36035

Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design, with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is designed for a fixed busbar connection with a term. nut kit on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It operates within Utilisation category A and has protection settings for over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated impulse voltage (Uimp) is 8 kV, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal and magnetic protection functions, with a trip current rating of 35 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

7 in stock
QOB315EPD5237 on Powermatic Associates

QOB315EPD5237

Schneider Electric

Square D by Schneider Electric QOB315EPD5237 is a Miniature Circuit Breaker (MCB) designed with Equipment Protection Device (EPD) functionality, offering ground fault protection. This bolt-on mounted MCB operates with a rated current of 15A and a connection type that also utilizes a bolt-on mechanism. It is designed for use with a rated voltage (AC) of 240 V and can accommodate a wire cross-section of 14-8AWG (1 cable Cu). The QOB315EPD5237 features 3 poles and has a residual current sensitivity of 30mA / 0.03. Its protection functions include ground fault protection, and it has a short circuit breaking rating of 10kA at 240Vac. The type of terminals used in this MCB is ring tongue.

1 in stock
