H464AWK Schneider Electric Electronic Components

H464AWK on Powermatic Associates
Schneider Electric

Part#:H464AWK

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

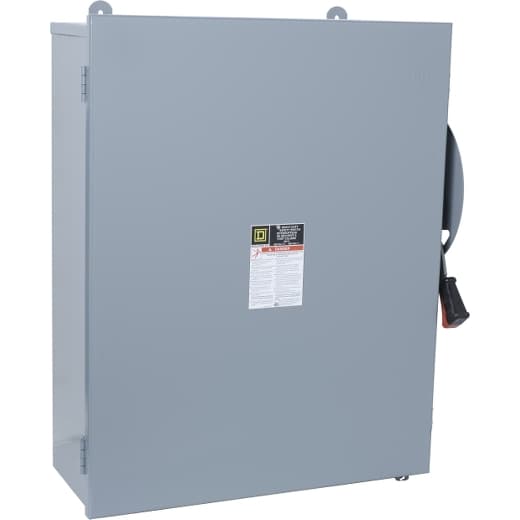

Safety switch, heavy duty, fusible, 200A, 4 poles, 150 hp, 600 VAC/DC, NEMA 12

Product Details

  • Current Rating
    200 A
  • Wiring Configuration
    4-wire
  • Number Of Poles
    4
  • Width
    18.63 in (473.20 mm)
  • Voltage Rating
    600 V AC/DC
  • Electrical Connection
    Lugs
  • Depth
    8.75 in (222.25 mm)
  • Height
    29 in (736.60 mm)
  • Factory Installed Neutral
    None
  • Disconnect Type
    Fusible disconnect
  • Product
    Single Throw Safety Switch
  • Wire Size
    AWG 6...250 kcmil copper or aluminium
  • Device Application
    Heavy application
  • Enclosure Rating
    NEMA 3R/12 galvannealed steel
  • Phase
    3 phase
  • Mounting Type
    Surface
  • Net Weight
    86.51 lb(US) (39.24 kg)
  • Duty Rating
    Heavy duty
  • Tightening Torque
    275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil)
  • Fuse Type
    H or K R, J or L
  • Short Circuit Current Rating
    10 kA H or K 200 kA R, J or L
  • Maximum Horse Power Rating
    50 hp 480 V at AC 50-60 Hz for 2 phases conforming to NEC 240.6 125 hp 480 V at AC 50-60 Hz for 2 phases conforming to NEC 430.52 60 hp 600 V at AC 50-60 Hz for 2 phases conforming to NEC 240.6 150 hp 600 V at AC 50-60 Hz for 2 phases confo

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H464AWK on Powermatic Associates is $3,222.00. Order now.
