Part#:HDL36020

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

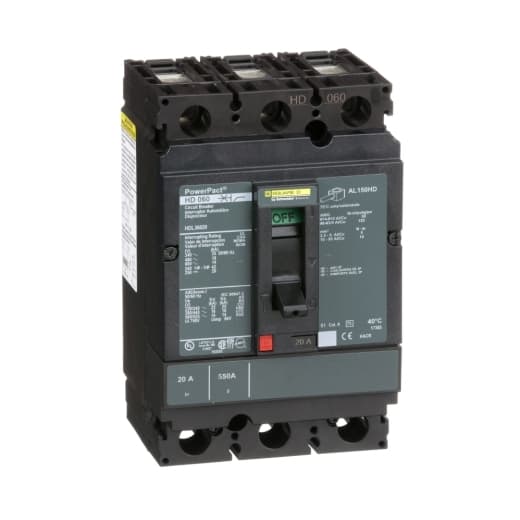

Square D by Schneider Electric HDL36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 20A and offers both thermal protection (overload) and magnetic protection (short-circuit). This MCCB has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It supports a mounting mode of individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. The HDL36020 provides an IP40 degree of protection and operates with a toggle (manual) mechanism. Its protection settings include over-current fixed at 20A, short-circuit hold current fixed at 350A, and short-circuit trip current fixed at 750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 20 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac for UL489, and 20kA at 250Vdc for UL489. The trip unit type is thermal-magnetic (fixed), without a display, and it falls under utilisation category A. Connections are made via lugs on both load and line sides.

Product Details

  • Magnetic Tripping Current
    750 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Magnetic Hold Current
    350 A
  • Height
    6.4 in (162.56 mm)
  • Breaking Capacity Code
    D
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Range Of Product
    PowerPact H
  • Depth
    4.36 in (110.74 mm)
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    20 A
  • Width
    4.12 in (104.65 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL36020 on Powermatic Associates is $1,088.00. Order now.
