HDL36150 Schneider Electric Industrial Automation Components

HDL36150 on Powermatic Associates
Schneider Electric

Part#:HDL36150

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

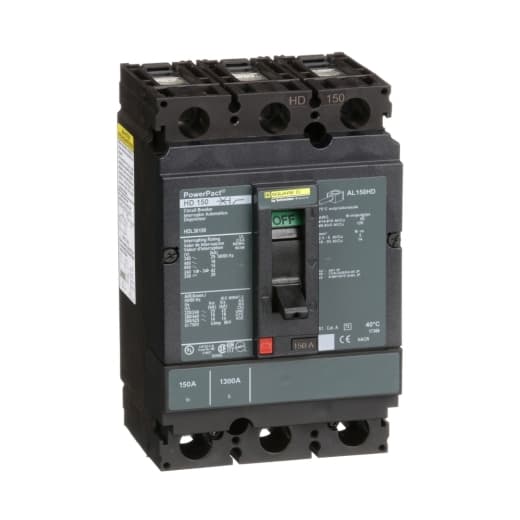

Square D by Schneider Electric HDL36150 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed with a PowerPact H-Frame 150 TMD 3P 150A 600Vac/250Vdc 14kA with lugs at 80% rated on both load and line sides. It features three poles (3P) and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 150A, with a rated insulation voltage (Ui) of 750 V, and it operates at a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, with a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. It provides an IP40 degree of protection and operates manually via a toggle. Protection settings include over-current fixed at 150A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, and the frame current rating is 150 AF. It has a short circuit breaking rating of 25kA (240Vac; UL489), 18kA (480Vac; UL489), 18kA (480Y/277Vac; UL489), 14kA (600Vac; UL489), 14kA (600Y/347Vac; UL489), and 20kA (250Vdc; UL489). The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Magnetic Tripping Current
    1700 A
  • Magnetic Hold Current
    900 A
  • Mounting Mode
    Unit mount
  • Depth
    4.36 in (110.74 mm)
  • Breaking Capacity Code
    D
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Line Rated Current
    150 A
  • Height
    6.4 in (162.56 mm)
  • Range Of Product
    PowerPact H
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    80 %
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL36150 on Powermatic Associates is $2,600.00. Order now.

HDL36150 Related Documents

Instruction Sheet-1631035869973.pdfProduct Datasheet-1631035869965.pdf
