Part#:HGA261101

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

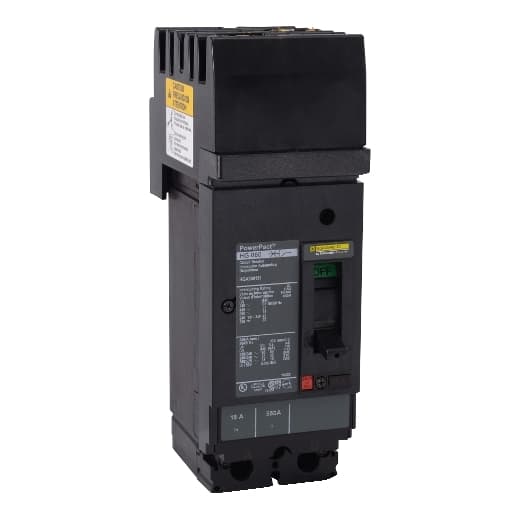

Circuit breaker, PowerPact H, I-Line, thermal magnetic, 110A, 2 pole,18 kA, 600 VAC

Product Details

  • Electrical Connection
    I-Line connection line Lugs load
  • Continuous Current Rating
    80 %
  • Width
    2.94 in (74.68 mm)
  • Depth
    4.8 in (121.92 mm)
  • Height
    9.73 in (247.14 mm)
  • Phase Connection
    AB
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Breaking Capacity Code
    G
  • Number Of Poles
    2P
  • Line Rated Current
    110 A
  • Mounting Mode
    I-Line
  • Product Or Component Type
    Circuit breaker
  • Magnetic Tripping Current
    1700 A
  • Range Of Product
    PowerPact H
  • Magnetic Hold Current
    900 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGA261101 on Powermatic Associates is $3,212.00. Order now.
