HGA36100 Schneider Electric Industrial Automation Components

HGA36100 on Powermatic Associates
Schneider Electric

Part#:HGA36100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

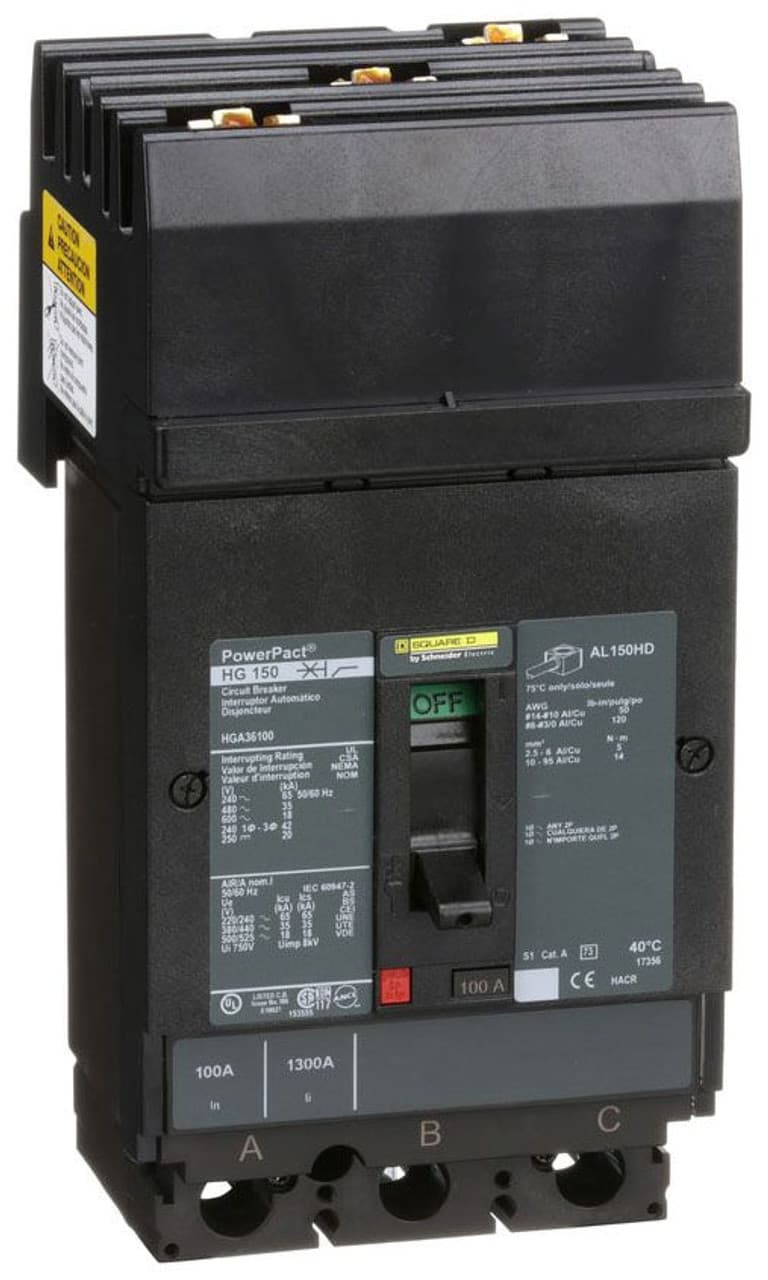

Square D by Schneider Electric HGA36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGA sub-range, designed with a PowerPact H-Frame 150 TMD 3P 100A 600Vac/500Vdc 18kA I-line ABC 80% rated. It features a 3-pole (3P) configuration and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 100A, with a rated insulation voltage (Ui) of 750 V and rated voltages of 600Vac 600Y/347Vac for AC and 500Vdc for DC. This MCCB mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. It has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm, with an IP40 degree of protection. The operating mode is manual toggle, and it includes over-current protection fixed at 100A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, and the frame current rating is 150 AF. Its short circuit breaking rating varies with voltage, including 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Line Rated Current
    100 A
  • Magnetic Hold Current
    900 A
  • Magnetic Tripping Current
    1700 A
  • Depth
    4.8 in (121.92 mm)
  • Number Of Poles
    3P
  • Phase Connection
    ABC
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Breaking Capacity Code
    G
  • Mounting Mode
    I-Line
  • Height
    9.73 in (247.14 mm)
  • Range Of Product
    PowerPact H
  • Width
    4.48 in (113.79 mm)
  • Shipping Weight:
    5.10 lbs.
  • Shipping Height:
    7.00 In.
  • TS PIK:
    21108022
  • Shipping Length:
    11.00 In.
  • UPC:
    78590179505
  • Shipping Width:
    7.00 In.
  • Electrical Connection
    I-Line connection line Lugs load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGA36100 on Powermatic Associates is $1,772.00. Order now.
