HGL36025T Schneider Electric Electronic Components

HGL36025T on Powermatic Associates
Schneider Electric

Part#:HGL36025T

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

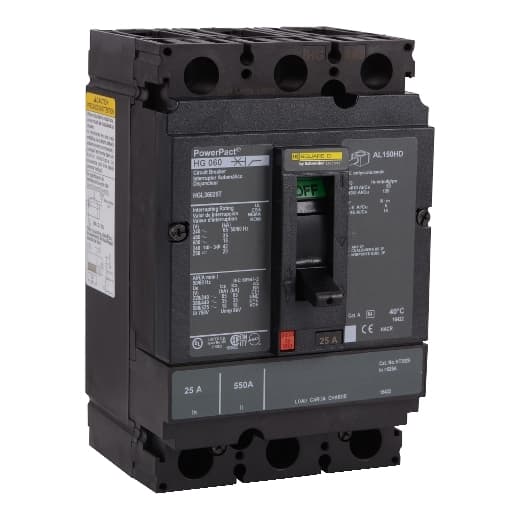

PowerPact H Circuit Breaker,ThermMagn,25A,3P,600V,18kA, Removable TU

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Width
    4.12 in (104.65 mm)
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Height
    6.4 in (162.56 mm)
  • Line Rated Current
    25 A
  • Breaking Capacity Code
    G
  • Mounting Mode
    Unit mount
  • Product Or Component Type
    Circuit breaker
  • Magnetic Tripping Current
    750 A
  • Number Of Poles
    3P
  • Magnetic Hold Current
    350 A
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36025T on Powermatic Associates is $2,239.50. Order now.
