HJA260701 Schneider Electric Electronic Components

HJA260701 on Powermatic Associates
Schneider Electric

Part#:HJA260701

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

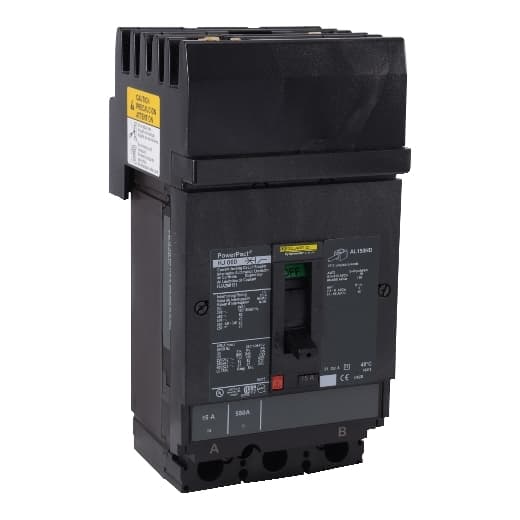

Square D by Schneider Electric HJA260701 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJA sub-range, featuring a PowerPact H-Frame 150 TMD 2P 70A 600Vac/250Vdc 25kA I-line AB 80% rated design. It offers a 2-pole (2P) configuration with I-line connection (AB phases) for mounting. This MCCB provides thermal protection for overload scenarios and magnetic protection against short-circuits, with a rated current of 70A. The rated insulation voltage (Ui) is 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. The net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection rated at IP40. The operating mode is manual toggle, with over-current protection settings fixed at 70A and short-circuit protection settings fixed at 800A hold current and 1450A trip current. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 70 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Product Or Component Type
    Circuit breaker
  • Phase Connection
    AB
  • Number Of Poles
    2P
  • Line Rated Current
    70 A
  • Height
    9.73 in (247.14 mm)
  • Magnetic Tripping Current
    1450 A
  • Depth
    4.8 in (121.92 mm)
  • Mounting Mode
    I-Line
  • Width
    2.94 in (74.68 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Range Of Product
    PowerPact H
  • Breaking Capacity Code
    J
  • Magnetic Hold Current
    800 A
  • Continuous Current Rating
    80 %
  • Electrical Connection
    I-Line connection line Lugs load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJA260701 on Powermatic Associates is $2,736.00. Order now.
