HJL36100U31X Schneider Electric Industrial Automation Components

HJL36100U31X on Powermatic Associates
Schneider Electric

Part#:HJL36100U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

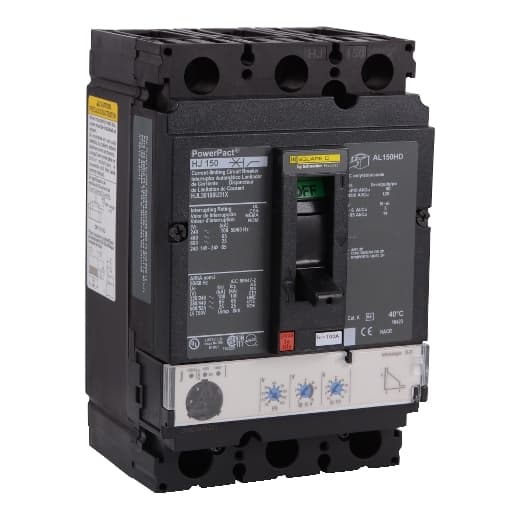

Square D by Schneider Electric HJL36100U31X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2 (LI) design. It is a 3-pole (3P) device with a rated current of 100A and offers both long-time (L) and instantaneous (I) protection functions. The breaker is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, an AC rated voltage of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. The device's net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, and it features a degree of protection of IP40. The operating mode is manual toggle, with protection settings adjustable for overload (0.35...1 x In or 35A...100A) and short-circuit (1.5...15 x In or 150A...1500A) conditions. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2 (LI) with no display, and it falls under utilisation category A.

Product Details

  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Width
    4.12 in (104.65 mm)
  • Height
    6.4 in (162.56 mm)
  • Depth
    4.36 in (110.74 mm)
  • Line Rated Current
    100 A
  • Breaking Capacity Code
    J
  • Continuous Current Rating
    80 %
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36100U31X on Powermatic Associates is $2,258.00. Order now.
