HOM60120M200PC Schneider Electric Electronic Components

HOM60120M200PC on Powermatic Associates
Schneider Electric

Part#:HOM60120M200PC

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

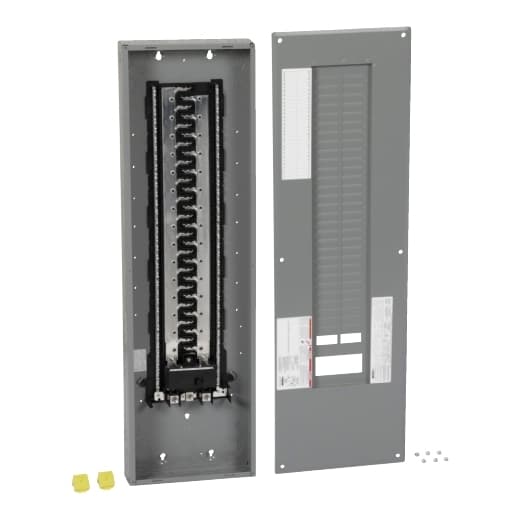

Square D by Schneider Electric HOM60120M200PC is a load center designed for single-phase (1PH) networks. It features a welded sheet steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H1235mm x W362mm x D95mm (H48.62" x W14.25" x D3.74"), with 60 spaces allowing for up to 120 single pole circuits or 60 tandem breakers. It offers a connection type via lugs, a rated current of 200A, and supports a rated voltage (AC) of 120Vac/240Vac. The HOM60120M200PC is designed to meet NEMA 1 degree of protection standards.

Product Details

  • Marketing Trade Name
    Homeline
  • Wire Size
    AWG 4...250 kcmil copper or aluminium
  • Box Number
    25
  • Voltage Rating
    120/240 V AC
  • Width
    14.25 in (362 mm)
  • Cover Type
    Combination flush/surface cover
  • Load Center Type
    Main breaker
  • Provided Equipment
    Circuit breaker 1) 2P 200 A 120/240 V AC main supply ready assembled
  • Busbar Material
    Tin plated aluminium busbar
  • Rated Current
    200 A
  • Product Type
    Load Center
  • Wiring Configuration
    3-wire
  • Enclosure Rating
    NEMA 1 indoor
  • Ground Bar
    Grounding bar (ordered separately)
  • Surface Finish
    Baked enamel Gray
  • Depth
    3.74 in (95 mm)
  • Number Of Spaces
    60
  • Maximum Number Of Tandem Breakers
    60
  • Height
    48.62 in (1235 mm)
  • Maximum Number Of Single Pole Circuits
    120
  • Max Short Circuit Current Rating
    22 kA
  • Enclosure Material
    Welded sheet steel
  • Electrical Connection
    Lugs
  • Number Of Phases
    1 phase

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM60120M200PC on Powermatic Associates is $1,876.00. Order now.

HOM60120M200PC Related Documents

Product Datasheet-1631040879365.pdfCatalog-1631040879735.pdfInstruction Sheet-1631040879362.pdf
