HU365NR Schneider Electric Industrial Automation Components

HU365NR on Powermatic Associates
Schneider Electric

Part#:HU365NR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

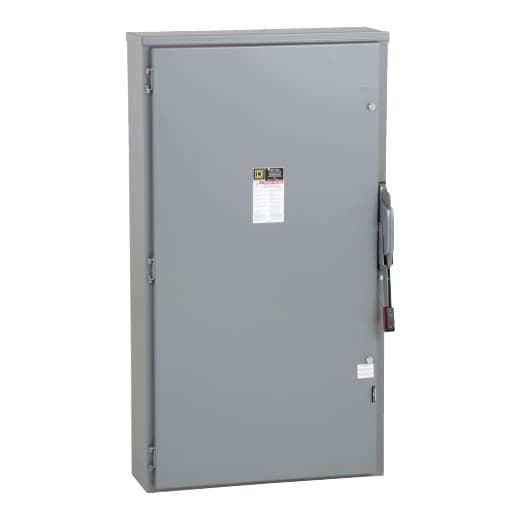

Schneider Electric - HU365NR

Product Details

  • Factory Installed Neutral
    Neutral (factory installed)
  • Wiring Configuration
    4-wire (3PH + N)
  • Disconnect Type
    Non-fusible disconnect
  • Number Of Poles
    3
  • Voltage Rating
    600 V AC/DC
  • Height
    50.31 in (1277.87 mm)
  • Product
    Single Throw Safety Switch
  • Tightening Torque
    550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
  • Device Application
    Heavy application
  • Width
    27.88 in (708.15 mm)
  • Duty Rating
    Heavy duty
  • Enclosure Rating
    NEMA 3R galvannealed steel
  • Net Weight
    186.95 lb(US) (84.8 kg)
  • Phase
    3 phase
  • Mounting Type
    Surface
  • Current Rating
    400 A
  • Depth
    10.13 in (257.30 mm)
  • Wire Size
    AWG 1/0...750 kcmil copper or aluminium 2 x AWG 1/0...2 x 300 kcmil copper or aluminium
  • Maximum Horse Power Rating
    125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 350 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 250 V at DC 50 hp 600 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU365NR on Powermatic Associates is $4,167.00. Order now.
