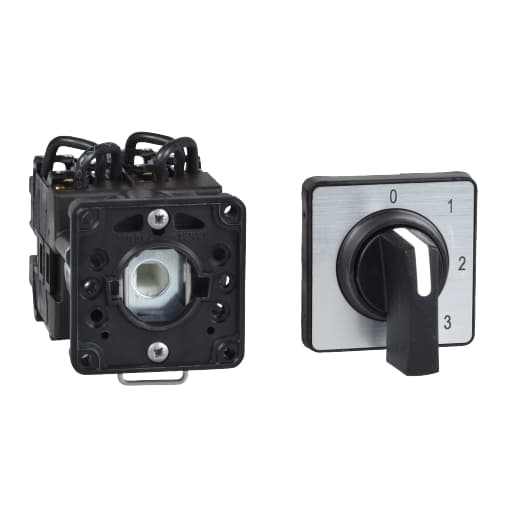

K2D002UCH Schneider Electric Industrial Automation Components

Product Details

• Cam Switch Head Type
  With front plate 45 x 45 mm
• Poles Description
  2P
• Mechanical Durability
  1000000 cycles
• Type Of Operator
  Black handle 1.38 in (35 mm)
• Return
  Without
• CAD Overall Height
  1.97 in (50 mm)
• Off Position
  With Off position
• Short-Circuit Protection
  20 A cartridge fuse gG
• CAD Overall Depth
  2.32 in (59 mm)
• Switching Angle
  45 °
• Positive Opening
  With
• Rotary Handle Padlocking
  Without
• Fixing Mode
  Ø 22 mm hole
• [Ithe] Conventional Enclosed Thermal Current
  16 A
• CAD Overall Width
  1.77 in (45 mm)
• Presentation Of Legend
  With metallic legend, 2 - 0 - 1 black marking
• Short-Circuit Current
  10000 A
• Net Weight
  0.35 lb(US) (0.16 kg)
• [Ith] Conventional Free Air Thermal Current
  20 A
• Contact Operation
  Slow-break
Range Of Product
Harmony K
Product Or Component Type
Complete cam switch
Product Mounting
Front mounting
Component Name
K2
[Ui] Rated Insulation Voltage
690 V 3)IEC 60947-1
Cam Switch Function
Changeover switch
IP Degree Of Protection
IP65 conforming to IEC 529 IP65 conforming to NF C 20-010
Electrical Connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Switching Positions
Right: 0° - 45° Left: 0° - 315°
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function 6 kV IEC 947-1
Electrical Durability
200000 cycles AC-23 200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21
Maximum Operating Rate
2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
