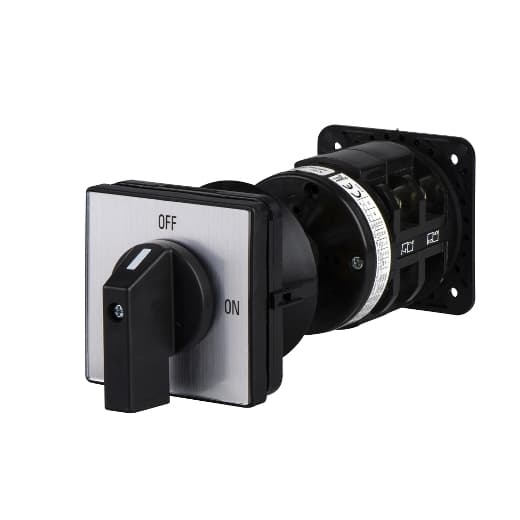

K50E003WP Schneider Electric Industrial Automation Components

Product Details

• Rotary Handle Padlocking
  Without
• [Ith] Conventional Free Air Thermal Current
  50 A
• Poles Description
  3P
• Contact Operation
  Slow-break
• Component Name
  K50
• Mechanical Durability
  300000 cycles
• Product Or Component Type
  Complete cam switch
• Return
  Without
• Range Of Product
  Harmony K
• Presentation Of Legend
  With metallic, 1 - 0 - 2 black
• Short-Circuit Current
  5000 A
• CAD Overall Depth
  4.72 in (120 mm)
• Type Of Operator
  Black handle
• Switching Angle
  60 °
• Tightening Torque
  17.70 lbf.in (2 N.m)
• CAD Overall Height
  2.52 in (64 mm)
• Fixing Mode
  4 holes
• Cam Switch Head Type
  With front plate 64 x 64 mm
• CAD Overall Width
  2.52 in (64 mm)
• Net Weight
  1.07 lb(US) (0.485 kg)
Cam Switch Function
Reversing switch
Short-Circuit Protection
63 A cartridge fuse gG
Product Mounting
Front mounting
Off Position
With Off position
Positive Opening
With
Switching Positions
Right: 0° - 60° Left: 0° - 300°
[Ui] Rated Insulation Voltage
690 V 3)EN 60947-1 690 V 3)IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 947-1 6 kV IEC 947-1
Electrical Connection
Captive screw clamp terminals flexible 2 x 6 mm² Captive screw clamp terminals solid 2 x 10 mm²
IP Degree Of Protection
IP40 conforming to IEC 529 IP40 conforming to NF C 20-010
Switching Capacity In Ma
15000 mA DC 120 V 2 inductive 50 ms) 15000 mA DC 180 V 3 inductive 50 ms) 15000 mA DC 60 V 1 inductive 50 ms) 20000 mA DC 140 V 3 inductive 50 ms) 20000 mA DC 48 V 1 inductive 50 ms) 20000 mA DC 95 V 2 inductive 50 ms) 30000
