Part#:LC1D323M7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

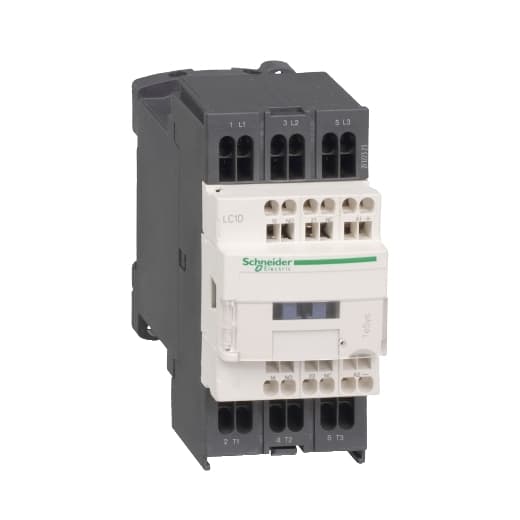

Schneider Electric LC1D323M7 is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3NO). It has a rated current of 50A for AC-1 and 32A for AC-3 at 440Vac. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates within control voltage ranges of 176-242Vac at 50Hz and 187-242Vac at 60Hz, with a nominal voltage of 220Vac. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power up to 18.5kW for AC-3 across various voltages. It also features 1 normally closed (NC) auxiliary contact with instantaneous contact types 1NO+1NC. The rated power in horsepower varies from 2HP at 115Vac in single-phase to 25HP at 575-600Vac in three-phase, according to UL/CSA standards. Its mechanical durability is rated at 15 million operations at no load, and its electrical durability is rated at 1.6 million operations with load. The rated voltage for phase-to-phase connections is 690 V.

Product Details

  • Poles Description
    3P
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Power Pole Contact Composition
    3 NO
  • Control Circuit Type
    AC 50/60 Hz
  • Rated Breaking Capacity
    550 A 440 V power circuit IEC 60947
  • Minimum Switching Current
    5 mA signalling circuit
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Product Or Component Type
    Contactor
  • Signalling Circuit Frequency
    25...400 Hz
  • Coil Technology
    Without built-in suppressor module
  • Range
    TeSys
  • [Uc] Control Circuit Voltage
    220 V AC 50/60 Hz
  • Device Short Name
    LC1D
  • Overvoltage Category
    III
  • Heat Dissipation
    2…3 W 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Average Impedance
    2 mOhm - Ith 50 A 50 Hz power circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Product Name
    TeSys D
  • Front Cover
    With
  • Mechanical Durability
    15 Mcycles
  • Minimum Switching Voltage
    17 V signalling circuit
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • Mounting Support
    Rail Plate
  • [Ie] Rated Operational Current
    32 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Electrical Durability
    1.65 Mcycles 32 A AC-3 <= 440 V 1.4 Mcycles 50 A AC-1 <= 440 V
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 50 A 140 °F (60 °C) power circuit
  • Power Dissipation Per Pole
    2 W AC-3 5 W AC-1
  • Contactor Application
    Motor control Resistive load
  • Operating Time
    12...22 ms closing 4...19 ms opening
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Utilisation Category
    AC-4 AC-3 AC-1
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring terminals 1 0.01 in² (4 mm²)flexible without cable end Powe
  • Motor Power HP (UL / CSA)
    2 hp 115 V at AC 50/60 Hz for 1 phase 5 hp 230/240 V at AC 50/60 Hz for 1 phase 7.5 hp 200/208 V at AC 50/60 Hz for 3 phase 10 hp 230/240 V at AC 50/60 Hz for 3 phase 20 hp 460/480 V at AC 50/60 Hz for 3 phase 30 hp 575/600 V at A
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • [Icw] Rated Short-Time Withstand Current
    260 A 104 °F (40 °C) - 10 s power circuit 430 A 104 °F (40 °C) - 1 s power circuit 60 A 104 °F (40 °C) - 10 min power circuit 138 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Motor Power Kw
    7.5 kW 220...230 V AC 50/60 Hz AC-3) 15 kW 380...400 V AC 50/60 Hz AC-3) 15 kW 415...440 V AC 50/60 Hz AC-3) 18.5 kW 500 V AC 50/60 Hz AC-3) 18.5 kW 660...690 V AC 50/60 Hz AC-3) 7.5 kW 400 V AC 50/60 Hz AC-4)
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • Product Certifications
    BV LROS (Lloyds register of shipping) CCC GL UL CSA GOST RINA DNV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
