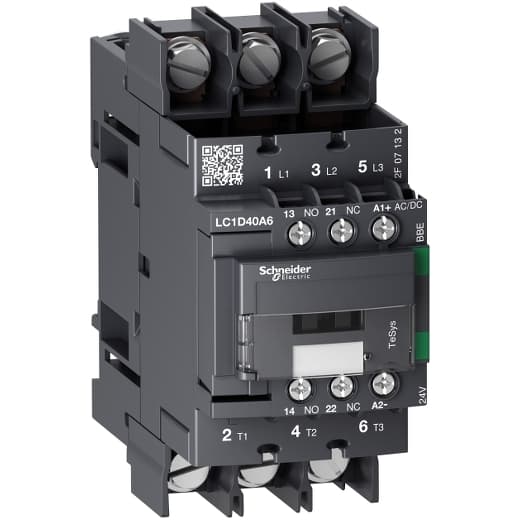

LC1D40A6BBE Schneider Electric Industrial Automation Components

Product Details

• Motor Power Kw
  11 kW 220...230 V AC 50 Hz AC-3) 18.5 kW 380...400 V AC 50 Hz AC-3) 22 kW 415 V AC 50 Hz AC-3) 22 kW 440 V AC 50 Hz AC-3) 22 kW 500 V AC 50 Hz AC-3) 30 kW 660...690 V AC 50 Hz AC-3)
• [Icw] Rated Short-Time Withstand Current
  72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
• Motor Power HP (UL / CSA)
  3 hp 115 V at AC 60 Hz for 1 phase 5 hp 230/240 V at AC 60 Hz for 1 phase 10 hp 200/208 V at AC 60 Hz for 3 phase 10 hp 230/240 V at AC 60 Hz for 3 phase 30 hp 460/480 V at AC 60 Hz for 3 phase 30 hp 575/600 V at AC 60 Hz for 3 ph
• Product Certifications
  CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
• Standards
  EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
• Control Circuit Voltage Limits
  <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
• Associated Fuse Rating
  80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
• Irms Rated Making Capacity
  800 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
• Operating Time
  55...65 ms closing 20...80 ms opening
• [Ui] Rated Insulation Voltage
  Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
• Auxiliary Contacts Type
  Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
• Power Dissipation Per Pole
  5.4 W AC-1 2.4 W AC-3
• Contactor Application
  Motor control Resistive load
• [Ie] Rated Operational Current
  60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 40 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
• Non-Overlap Time
  1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
• Mounting Support
  Plate Rail
• Utilisation Category
  AC-1 AC-3
• Electrical Durability
  2 Mcycles 35 A AC-3 <= 440 V 0.7 Mcycles 60 A AC-1 <= 440 V
• [Ith] Conventional Free Air Thermal Current
  60 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
Connections - Terminals
Power circuit lugs-ring terminals 0.65 in (16.5 mm)) Control circuit lugs-ring terminals 0.31 in (8 mm))
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance
> 10 MOhm signalling circuit
Minimum Switching Voltage
17 V signalling circuit
Heat Dissipation
0.5 W
Minimum Switching Current
5 mA signalling circuit
Signalling Circuit Frequency
25...400 Hz
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Mechanical Durability
6 Mcycles
Coil Technology
Built-in bidirectional peak limiting
Front Cover
With
Hold-In Power Consumption In W
0.5 W 68 °F (20 °C)
Inrush Power In W
11 W 68 °F (20 °C)
Average Impedance
1.5 mOhm - Ith 60 A 50 Hz power circuit
Rated Breaking Capacity
800 A 440 V power circuit IEC 60947
Overvoltage Category
III
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Auxiliary Contact Composition
1 NO + 1 NC
Coil Type
DC low consumption
[Uc] Control Circuit Voltage
24 V DC
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz
Power Pole Contact Composition
3 NO
Poles Description
3P
Device Short Name
LC1D
Product Name
TeSys D Green
Product Or Component Type
Contactor
Range
TeSys
