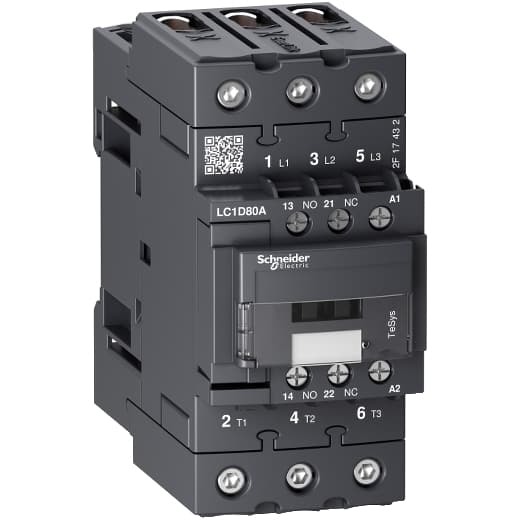

LC1D80AF7 Schneider Electric Industrial Automation Components

Product Details

• Range
  TeSys
• [Uc] Control Circuit Voltage
  110 V AC 50/60 Hz
• Front Cover
  With
• Device Short Name
  LC1D
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Mechanical Durability
  6 Mcycles
• Product Or Component Type
  Contactor
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Signalling Circuit Frequency
  25...400 Hz
• Insulation Resistance
  > 10 MOhm signalling circuit
• Product Name
  TeSys D
• Power Pole Contact Composition
  3 NO
• Control Circuit Type
  AC 50/60 Hz
• Minimum Switching Current
  5 mA signalling circuit
• Poles Description
  3P
• Overvoltage Category
  III
• Rated Breaking Capacity
  1000 A 440 V power circuit IEC 60947
• Auxiliary Contact Composition
  1 NO + 1 NC
• Average Impedance
  1.5 mOhm - Ith 80 A 50 Hz power circuit
• Heat Dissipation
  4…5 W 50/60 Hz
Minimum Switching Voltage
17 V signalling circuit
Coil Technology
Without built-in suppressor module
Contactor Application
Motor control Resistive load
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 80 A 140 °F (60 °C) power circuit
[Ue] Rated Operational Voltage
Power circuit 690 V AC 25...400 Hz Power circuit 300 V DC
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Utilisation Category
AC-1 AC-3
[Ie] Rated Operational Current
80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 66 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In VA
13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
Inrush Power In VA
140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mounting Support
Rail Plate
Operating Time
4...19 ms opening 12...26 ms closing
[Ui] Rated Insulation Voltage
Signalling circuit 690 V IEC 60947-1 Power circuit 690 V IEC 60947-4-1
Power Dissipation Per Pole
9.6 W AC-1 6.5 W AC-3
Electrical Durability
0.7 Mcycles 80 A AC-1 <= 440 V 1 Mcycles 66 A AC-3 <= 440 V
Connections - Terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V AC power circuit IEC 60947
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
Control Circuit Voltage Limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
Standards
EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Motor Power Kw
18.5 kW 220...230 V AC 50 Hz AC-3) 37 kW 380...400 V AC 50 Hz AC-3) 37 kW 415 V AC 50 Hz AC-3) 37 kW 440 V AC 50 Hz AC-3) 37 kW 500 V AC 50 Hz AC-3) 37 kW 660...690 V AC 50 Hz AC-3)
[Icw] Rated Short-Time Withstand Current
520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
Motor Power HP (UL / CSA)
5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 40 hp 460/480 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 p
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
