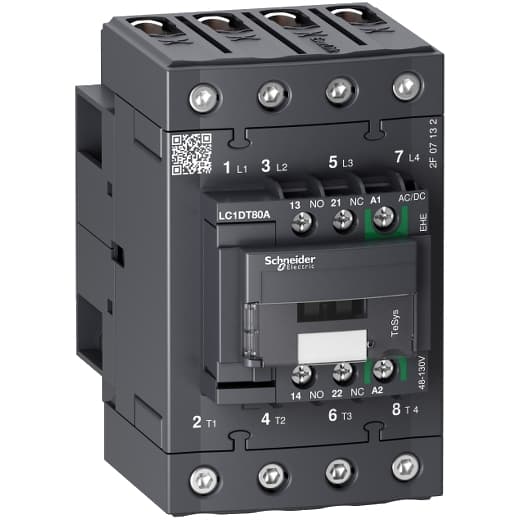

LC1DT80AEHE Schneider Electric Industrial Automation Components

LC1DT80AEHE on Powermatic Associates
Schneider Electric

Part#:LC1DT80AEHE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - LC1DT80AEHE

Product Details

  • Coil Type
    AC/DC electronic
  • Power Dissipation Per Pole
    10.2 W AC-1
  • Heat Dissipation
    0.9 W 50/60 Hz
  • Range
    TeSys
  • Hold-In Power Consumption In W
    0.9 W 68 °F (20 °C)
  • Minimum Switching Voltage
    17 V signalling circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • Front Cover
    With
  • Coil Technology
    Built-in bidirectional peak limiting
  • Signalling Circuit Frequency
    25...400 Hz
  • Power Pole Contact Composition
    4 NO
  • Overvoltage Category
    III
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Electrical Durability
    0.5 Mcycles 80 A AC-1 <= 440 V
  • Mechanical Durability
    6 Mcycles
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Poles Description
    4P
  • [Ie] Rated Operational Current
    80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Product Name
    TeSys D Green
  • Utilisation Category
    AC-1
  • Inrush Power In W
    19 W 68 °F (20 °C)
  • Device Short Name
    LC1D
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Product Or Component Type
    Contactor
  • Average Impedance
    1.6 mOhm - Ith 80 A 50 Hz power circuit
  • Inrush Power In VA
    23 VA 50/60 Hz 68 °F (20 °C))
  • Rated Breaking Capacity
    1000 A 440 V power circuit IEC 60947
  • Contactor Application
    Resistive load
  • Hold-In Power Consumption In VA
    1.4 VA 68 °F (20 °C)) 50/60 Hz
  • Minimum Switching Current
    5 mA signalling circuit
  • Mounting Support
    Plate Rail
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • [Uc] Control Circuit Voltage
    48...130 V AC 50/60 Hz 48...130 V DC
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Ith] Conventional Free Air Thermal Current
    80 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • Operating Time
    55...65 ms closing 20...80 ms opening
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Irms Rated Making Capacity
    1000 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Associated Fuse Rating
    125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
  • [Icw] Rated Short-Time Withstand Current
    110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1DT80AEHE on Powermatic Associates is $635.58. Order now.

LC1DT80AEHE Related Documents

Product Datasheet-1631038372232.pdfInstruction Sheet-1631038372278.pdf
