LC1F1250P7 Schneider Electric Industrial Automation Components

LC1F1250P7 on Powermatic Associates
Schneider Electric

Part#:LC1F1250P7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

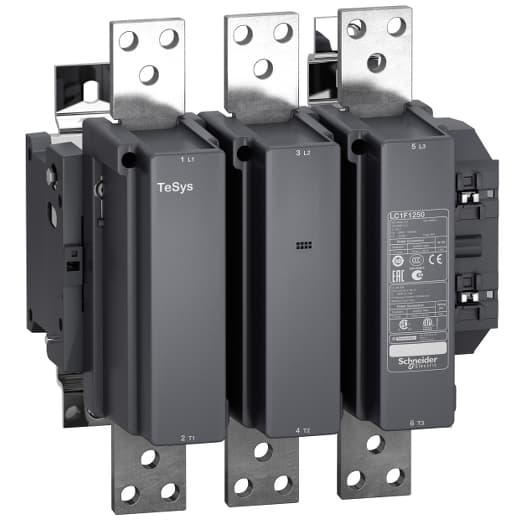

Schneider Electric LC1F1250P7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration and supports ring-lugs/bar connections. This contactor is rated for a current of 1260A under AC-1 conditions and operates at a control voltage range of 196-253Vac (230Vac nominal; 40-400Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, with a rated impulse voltage (Uimp) of 8 kV. It does not include normally open (NO) or normally closed (NC) auxiliary contacts. The mechanical durability of the LC1F1250P7, at no load, is rated at 1,000,000 operations, and it is designed for a phase-to-phase rated voltage (AC) of 1000 V.

Product Details

  • [Ith] Conventional Free Air Thermal Current
    1260 A 104 °F (40 °C)
  • Mounting Support
    Plate
  • Poles Description
    3P
  • Rated Breaking Capacity
    1890 A IEC 60947-4-1
  • Power Pole Contact Composition
    3 NO
  • Associated Fuse Rating
    1000 A gG <= 440 V
  • Overvoltage Category
    III
  • Maximum Operating Rate
    1200 cyc/h 131 °F (55 °C)
  • Utilisation Category
    AC-1
  • Contactor Application
    Resistive load
  • Hold-In Power Consumption In VA
    22 VA 40...400 Hz 0.9 68 °F (20 °C))
  • Product Or Component Type
    Contactor
  • [Ie] Rated Operational Current
    1260 A 104 °F (40 °C)) <= 440 V AC-1
  • Device Short Name
    LC1F
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV
  • Compatibility Code
    LC1F
  • Power Dissipation Per Pole
    120 W AC-1
  • Average Impedance
    0.12 mOhm - Ith 1260 A 50 Hz
  • Heat Dissipation
    20 W
  • Range
    TeSys
  • Product Name
    TeSys F
  • [Uc] Control Circuit Voltage
    230 V AC 40...400 Hz
  • Inrush Power In VA
    1650 VA 40...400 Hz 0.9 68 °F (20 °C))
  • [Ue] Rated Operational Voltage
    <= 460 V DC <= 690 V AC 50/60 Hz
  • Control Circuit Voltage Limits
    Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C))
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) Power circuit 513.34 lbf.in (58 N.m)
  • Operating Time
    40...80 ms closing 100...200 ms opening
  • [Ui] Rated Insulation Voltage
    1000 V IEC 60947-4-1 1500 V VDE 0110 group C
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Standards
    EN 60947-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-4-1
  • [Icw] Rated Short-Time Withstand Current
    3000 A 104 °F (40 °C) - 3 min 8000 A 104 °F (40 °C) - 10 s 5200 A 104 °F (40 °C) - 30 s 4000 A 104 °F (40 °C) - 1 min 2000 A 104 °F (40 °C) - 10 min
  • Product Certifications
    CETLus CB CCC CSA UKCA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
