LDB610 Schneider Electric Electronic Components

LDB610 on Powermatic Associates
Schneider Electric

Part#:LDB610

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

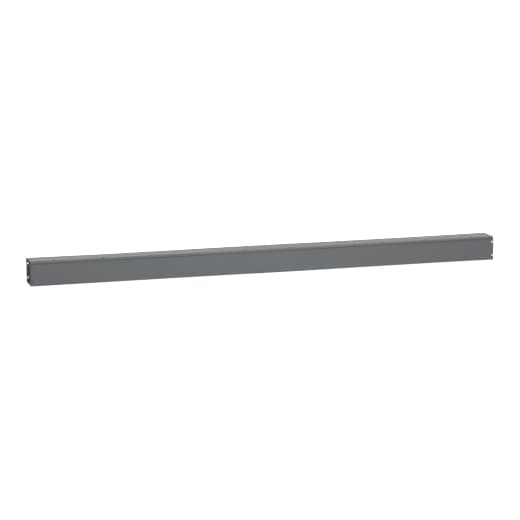

WIREWAY 6 x 6 - N1 Paint - 10 ft lg

Product Details

  • Length
    10 ft (3.05 m)
  • Finish
    Grey polyester powder conforming to ANSI 49
  • Cover Type
    Hinged cover
  • Enclosure Rating
    NEMA 1
  • Enclosure Material
    Steel 16 gauge without knock-outs
  • Product
    Straight length
  • Range
    SQUARE-Duct
  • Cross Section
    6 x 6 in
  • Certifications
    UL Listed CSA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LDB610 on Powermatic Associates is $284.00. Order now.

LDB610 Related Documents

Instruction Sheet-1631038155613.pdfProduct Datasheet-1631038155611.pdfCatalog-1631038155627.pdf
