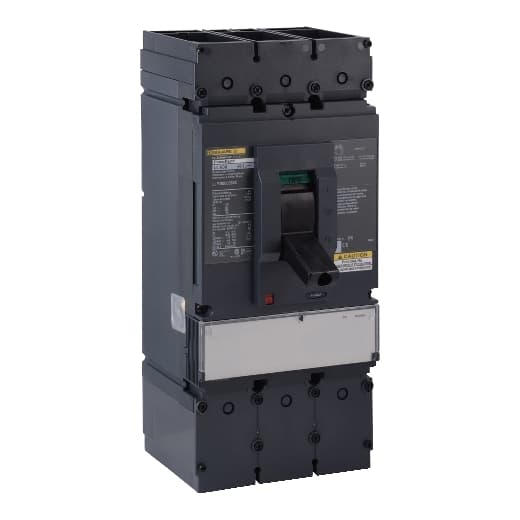

Part#:LLP36000S60X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

AUTOMATIC MOLDED CASE SWITCH 600V 600A

Product Details

  • Short-Circuit Withstand
    125 kA 240 V UL 489 100 kA 480 V UL 489 50 kA 600 V UL 489
  • Electrical Connection
    Lugs load Terminal nut line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Depth
    6.61 in (167.89 mm)
  • Magnetic Tripping Current
    6600 A
  • Height
    13.38 in (339.85 mm)
  • Width
    5.51 in (139.95 mm)
  • AWG Gauge
    AWG 2/0...500 kcmil aluminium/copper)2
  • Terminal Identifier
    AL600LS52K3
  • Mounting Mode
    Unit mount
  • Poles Description
    3P
  • Breaking Capacity Code
    L
  • Line Rated Current
    600 A
  • [Ue] Rated Operational Voltage
    600 V AC
  • Range Of Product
    PowerPact L
  • Trip Unit Technology
    Magnetic
  • Product Or Component Type
    Automatic switch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
