LLP36400U31X Schneider Electric Electronic Components

LLP36400U31X on Powermatic Associates
Schneider Electric

Part#:LLP36400U31X

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

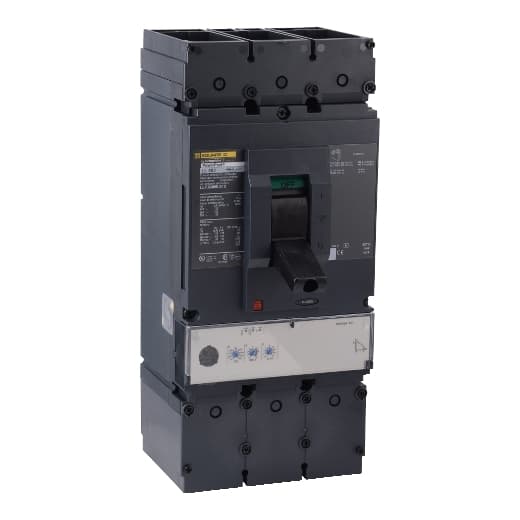

PowerPact L Circuit Breaker,Micrologic3.3,400A,3P,600V,50kA

Product Details

  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Depth
    6.61 in (167.89 mm)
  • Breaking Capacity Code
    L
  • Continuous Current Rating
    80 %
  • Width
    5.5 in (139.70 mm)
  • Terminal Identifier
    AL600LS52K3
  • Height
    11.3 in (287.02 mm)
  • Electrical Connection
    Terminal nut line Lugs load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LLP36400U31X on Powermatic Associates is $14,878.50. Order now.
