LZ2H2X4BD Schneider Electric Industrial Automation Components

LZ2H2X4BD on Powermatic Associates
Schneider Electric

Part#:LZ2H2X4BD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric LZ2H2X4BD is a starter designed for asynchronous motors, part of the Hybrid sub-range, combining contact and zero-voltage triac technologies. It features screw connections and is equipped with 2 x 3-poles (2x3P) for connectivity. This ultra-compact hybrid reversing standard starter offers thermal overload protection class 10A and supports a rated current range from 0.18A to 2.4A (AC-53a). It is designed for DIN rail mounting and has an IP20 degree of protection. The control voltage is specified at 24Vdc, with a rated operating voltage (Ue) of up to 500 V. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, with a contacts type of SPDT / 1C/O contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power ranges from 0.37kW at 220/230Vac to 1.1kW at 500Vac (AC-53a), and it also specifies rated power in horsepower (HP) as 0.5HP at 208Vac and 220-240Vac, and 1HP at 440-480Vac for 3-phase UL applications.

Product Details

  • Auxiliary Contact Composition
    1 C/O fault signalling
  • Height
    3.90 in (99 mm)
  • Motor Starter Type
    Direct on line
  • Width
    0.89 in (22.5 mm)
  • Current Consumption
    <= 40 mA 24 V DC
  • [Ui] Rated Insulation Voltage
    500 V AC 50/60 Hz
  • Thermal Protection Adjustment Range
    0.18…2.4 A
  • Range
    TeSys
  • Electrical Durability
    30 Mcycles
  • Net Weight
    7.48 oz (212 g)
  • [Ue] Rated Operational Voltage
    500 V AC
  • Thermal Overload Class
    Class 10A IEC 60947-4-2
  • Mounting Support
    DIN rail
  • Depth
    4.51 in (114.5 mm)
  • Product Or Component Type
    Reversing ultra-compact starter
  • Poles Description
    3P
  • Control Circuit Voltage Limits
    19.2...30 V DC
  • Tightening Torque
    4.43…5.31 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm 0.12 in (3 mm)
  • Pollution Degree
    2
  • Product Name
    TeSys H
  • [Uc] Control Circuit Voltage
    24 V DC
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV
  • Mounting Mode
    By clips
  • Device Short Name
    LZ2H
  • Maximum Operating Rate
    120 cyc/mn AC-51 50 % 6 cyc/mn AC-53A 50 %
  • Certifications
    CULus CE
  • Standards
    UL 60947-4-1 IEC 60947-4-2
  • Reset
    Manual Automatic reset Electrical reset
  • Connections - Terminals
    screw clamp terminals 1 0.00…0.00 in² (0.2…2.5 mm²) rigid screw clamp terminals 1 0.00…0.00 in² (0.25…2.5 mm²) flexible - with cable end screw clamp terminals 1 0.00…0.00 in² (0.2…2.5 mm²) flexible - without cable end
  • Maximum Horse Power Rating
    0.5 hp 200 V AC 0.5 hp 230 V AC 1 hp 460 V AC
  • [Ie] Rated Operational Current
    2.4 A 500 V AC-51 2.4 A 500 V AC-53A 2.4 A 500 V AC-51 mounting side by side 2.4 A 500 V AC-53A mounting side by side
  • Motor Power Kw
    0.37 kW 220 V AC 0.65 0.37 kW 230 V AC 0.65 0.75 kW 380 V AC 0.65 0.75 kW 400 V AC 0.65 0.75 kW 415 V AC 0.65 0.75 kW 440 V AC 0.65 1.1 kW 500 V AC 0.65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LZ2H2X4BD on Powermatic Associates is $277.20. Order now.

LZ2H2X4BD Related Documents

Instruction Sheet-1631038329306.pdfProduct Datasheet-1631038329292.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F53315 on Powermatic Associates

M9F53315

Schneider Electric

Schneider Electric M9F53315 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed to comply with UL489 standards. This 3-pole MCB has a rated current of 15A and features a rated insulation voltage (Ui) of 500V, with a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. The rated voltage (AC) for phase-to-phase is 440V. All three poles are protected, and it operates with a D tripping curve.

3 in stock

Manufacturer warranty

LZ2H2X4BD Schneider Electric

$277.20

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$277.20

$277.20 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare LZ2H2X4BD with other Industrial Automation Components products

Auxiliary Contact Composi...

Height

Motor Starter Type

Width

Current Consumption

[Ui] Rated Insulation Vol...

Thermal Protection Adjust...

Range

Electrical Durability

Net Weight

Selected product

LZ2H2X4BD
Backordered
LZ2H2X4BD
Schneider Electric

Schneider Electric LZ2H2X4BD is a starter designed for asynchronous motors, part of the Hybrid sub-r...

Auxiliary Contact Composition1 C/O fault signalling

Height3.90 in (99 mm)

Motor Starter TypeDirect on line

Width0.89 in (22.5 mm)

Current Consumption<= 40 mA 24 V DC

[Ui] Rated Insulation Voltage500 V AC 50/60 Hz

Thermal Protection Adjustment Range0.18…2.4 A

RangeTeSys

Electrical Durability30 Mcycles

Net Weight7.48 oz (212 g)

LC1D50A6BD
2 in stock
LC1D50A6BD
Schneider Electric

Schneider Electric LC1D50A6BD is a magnetic contactor from the Deca sub-range, featuring an EverLink...

Auxiliary Contact Composition-

Height-

Motor Starter Type-

Width-

Current Consumption-

[Ui] Rated Insulation Voltage-

Thermal Protection Adjustment Range-

RangeTeSys

Electrical Durability-

Net Weight-

LC1D40ABD
2 in stock
LC1D40ABD
Schneider Electric

Schneider Electric LC1D40ABD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM)...

Auxiliary Contact Composition-

Height-

Motor Starter Type-

Width-

Current Consumption-

[Ui] Rated Insulation Voltage-

Thermal Protection Adjustment Range-

RangeTeSys

Electrical Durability-

Net Weight-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

ATV340D11N4E on Powermatic Associates

ATV340D11N4E

Schneider Electric

Schneider Electric ATV340D11N4E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Machine 340 series. It features Safe Torque Off up to SIL3 / PLe with dual input, 5 points U/F, sensorless voltage vector control, current vector control with sensor, and Master/Slave daisy chain through PTO/PTI for MachineStruxure integration in SoMachine. It operates in velocity mode and torque control, offering 220% Tn in open or closed loop control, dynamic motor control performance (up to 400Hz speed bandwidth), and cyclic application task (1ms) with an energy-saving mode. The design includes a built-in EMC filter (class C3) and a built-in heatsink. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), with dimensions of H385mm x W180mm x D249mm and an IP20 degree of protection. The rated current is 32A (normal-duty; 4kHz), 24A (heavy-duty; 4kHz), with a maximum current of 43A (normal-duty; for 2s), 43A (heavy-duty; for 2s), and 35.2A (normal-duty; for 60s), 36A (heavy-duty; for 60s). It supports cabinet mounting, Ethernet/IP, Modbus TCP communication protocols, operates on a 3-phase network with an output frequency of 1-599 Hz, and includes 1 x analog output, 5 x digital inputs, 2 x digital outputs programmable as inputs or outputs, 1 x digital output (C/O SPDT relay contact), 1 x digital output (NO relay contact), and 2 x analog inputs. The current consumption is 34A (380Vac; normal-duty), 27.3A (480Vac; normal-duty), 34.7A (380Vac; heavy-duty), 27.7A (480Vac; heavy-duty), with a rated active power of 15kW (normal-duty), 11kW (heavy-duty), and rated power of 20HP (normal-duty), 15HP (heavy-duty).

0 in stock

Relevant products

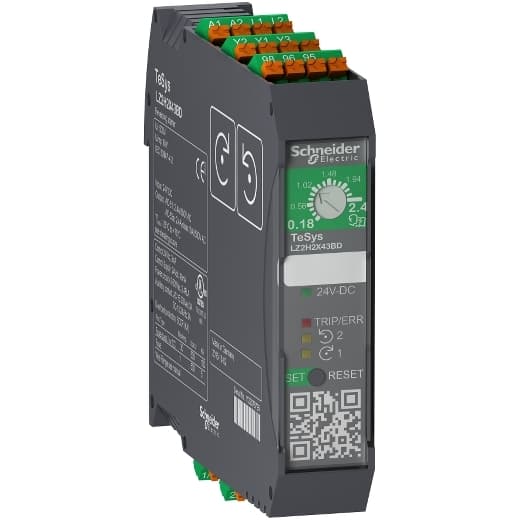

LZ2H2X43FU on Powermatic Associates

LZ2H2X43FU

Verified stock: 0

Schneider Electric LZ2H2X43FU is a starter designed for asynchronous motors, belonging to the Hybrid sub-range, which combines contact and zero-voltage triac technologies. It features spring connections and is equipped with 2 x 3-poles (2x3P) for connectivity. This ultra-compact hybrid reversing standard starter offers thermal overload protection classified under class 10A and supports a rated current range from 0.18A to 2.4A (AC-53a). It is designed for DIN rail mounting and has an IP20 degree of protection. The control voltage ranges from 110 to 230Vac (50Hz/60Hz), with a rated operating voltage (Ue) of up to 500 V. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with a contacts type of SPDT / 1C/O contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power varies with voltage, providing 0.37kW at 220/230Vac, 0.75kW at 380/400Vac, 415Vac, and 440Vac, and 1.1kW at 500Vac, all under AC-53a conditions. The rated power in horsepower (HP) is 0.5HP at 208Vac and 220-240Vac, and 1HP at 440-480Vac, all for 3-phase connections under UL standards.

Schneider Electric

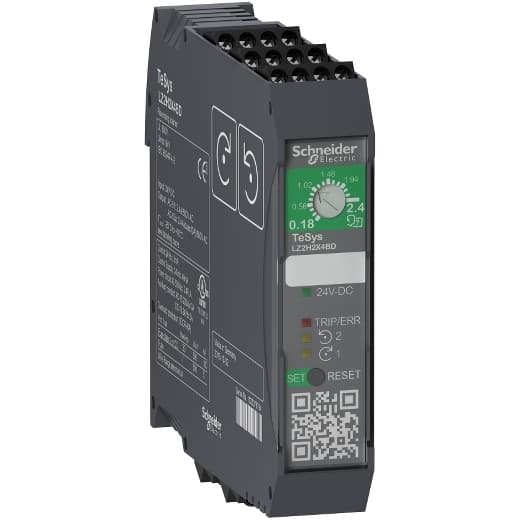

LZ2H2X4FU on Powermatic Associates
