M9F23220 Schneider Electric Industrial Automation Components

M9F23220 on Powermatic Associates
Schneider Electric

Part#:M9F23220

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

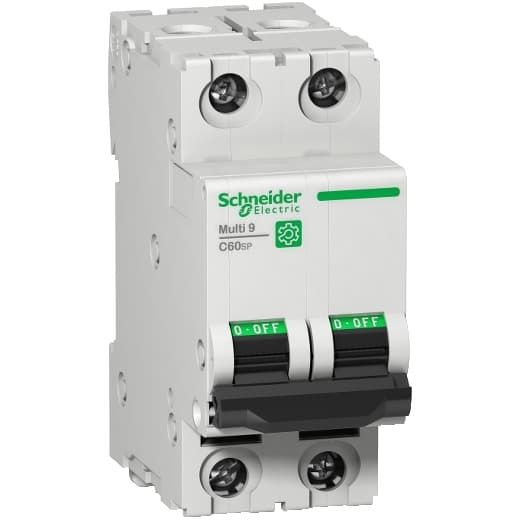

Schneider Electric M9F23220 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F23220 offers a short circuit breaking rating of 14kA AIR at 240Vac, 10kA AIR at 480Y/277Vac, and 10kA AIR at 125Vdc, with both poles protected. It operates with a D tripping curve and is compliant with UL1077 standards.

Product Details

  • Local Signalling
    ON/OFF indication
  • Poles Description
    2P
  • 9 Mm Pitches
    4
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Product Or Component Type
    Miniature circuit-breaker
  • Height
    3.19 in (81 mm)
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Device Short Name
    C60SP
  • Control Type
    Toggle
  • Mechanical Durability
    20000 cycles
  • Number Of Protected Poles
    2
  • Trip Unit Technology
    Thermal-magnetic
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Mounting Support
    DIN rail
  • Earth-Leakage Protection
    Without
  • Line Rated Current
    20 A 77 °F (25 °C) EN/IEC 60947-2
  • Mounting Mode
    Clip-on
  • Electrical Durability
    10000 cycles
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Range
    Multi 9
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Depth
    2.83 in (72 mm)
  • Device Application
    Distribution
  • Width
    1.42 in (36 mm)
  • Provision For Padlocking
    Padlockable
  • Product Name
    Multi 9 C60
  • Curve Code
    D
  • Contact Position Indicator
    Yes
  • Color
    Gray
  • Network Type
    AC DC
  • Magnetic Tripping Limit
    12 x In +/- 20 % AC 17 x In +/- 20 % DC
  • Product Certifications
    IEC CCC UR CSA
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • [Ics] Rated Service Breaking Capacity
    4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
  • Breaking Capacity
    14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 125 V DC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 10 kA AIR 125 V DC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F23220 on Powermatic Associates is $218.00. Order now.
