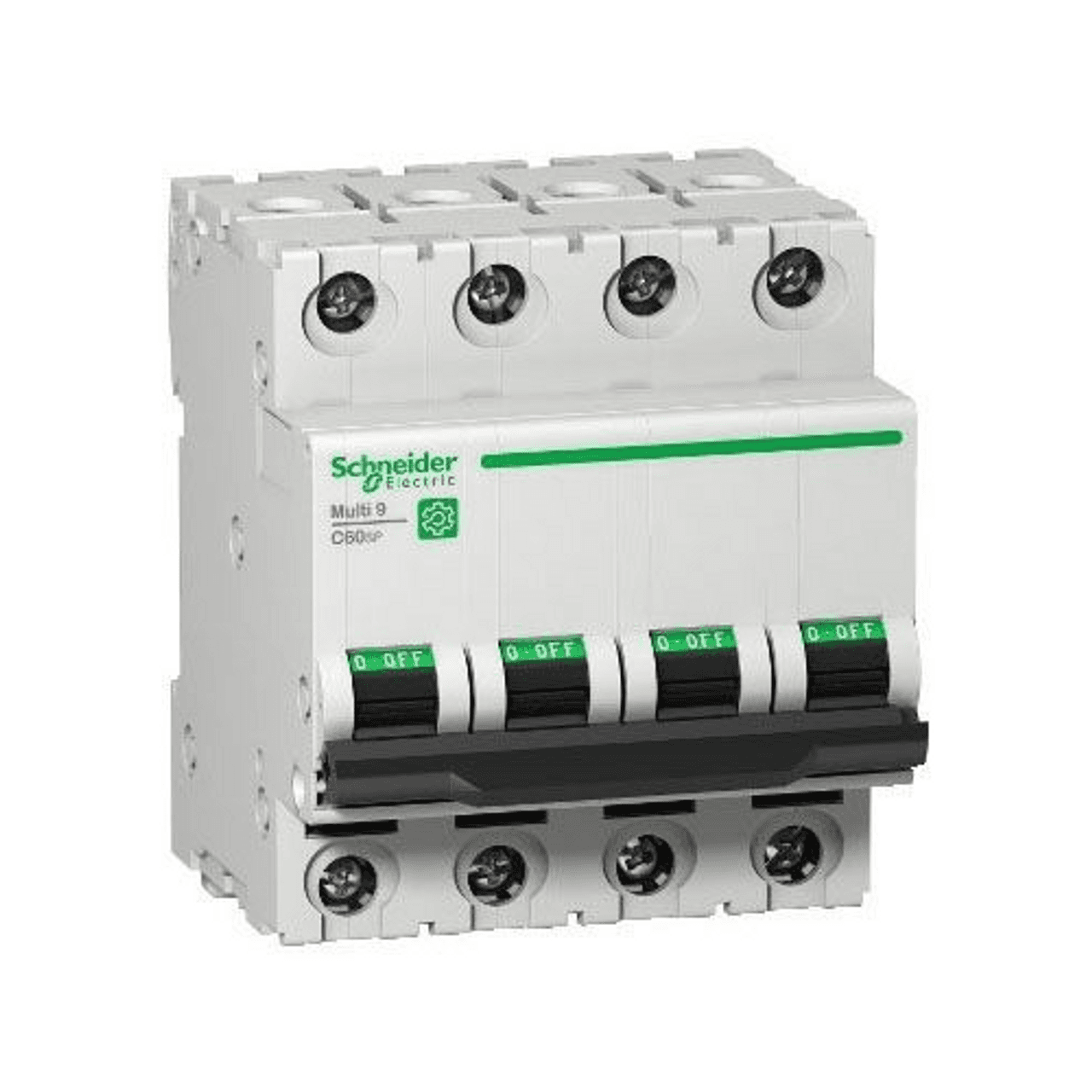

M9F23406 Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  C60SP
• Trip Unit Technology
  Thermal-magnetic
• Control Type
  Toggle
• Number Of Protected Poles
  4
• [Ui] Rated Insulation Voltage
  500 V AC EN/IEC 60947-2
• Line Rated Current
  6 A 77 °F (25 °C) EN/IEC 60947-2
• Product Name
  Multi 9 C60
• Curve Code
  D
• Contact Position Indicator
  Yes
• Product Or Component Type
  Miniature circuit-breaker
• Suitability For Isolation
  Yes EN/IEC 60947-2
• Mounting Support
  DIN rail
• Network Type
  AC
• Range
  Multi 9
• 9 Mm Pitches
  8
• Device Application
  Distribution
• [Uimp] Rated Impulse Withstand Voltage
  6 kVEN/IEC 60947-2
• Poles Description
  4P
• Provision For Padlocking
  Padlockable
• Wire Stripping Length
  0.55 in (14 mm) top or bottom
Magnetic Tripping Limit
12 x In +/- 20 % AC
Color
Gray
Mounting Mode
Clip-on
Mechanical Durability
20000 cycles
Tightening Torque
22.13 lbf.in (2.5 N.m) top or bottom
Depth
2.83 in (72 mm)
Electrical Durability
10000 cycles
Local Signalling
ON/OFF indication
Width
2.83 in (72 mm)
Earth-Leakage Protection
Without
Height
3.19 in (81 mm)
Size:
2.83 Inch Width x 2.83 Inch Depth x 3.19 Inch Height
Shipping Length:
4.00 In.
Interrupting Rating:
10 kA at 480 Star/277 Volt AC
Shipping Height:
3.00 In.
Type:
Thermal Magnetic
Volts:
240/415/440 VAC 50/60 Hertz
Shipping Width:
3.00 In.
Amps:
32 A
Poles:
4
Approval:
UL 1077
UPC:
606481169313
Terminal Type:
Tunnel (Top or Bottom)
Shipping Weight:
1.00 lbs.
Mounting:
Clip-On/DIN Rail
Wire Size:
0.55 Inch
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
Standards
EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
Product Certifications
IEC CCC UR CSA
[Ics] Rated Service Breaking Capacity
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
Breaking Capacity
14 kA AIR 240 V AC UL 1077 14 kA AIR 240 V AC CSA C22.2 No 235 10 kA AIR 480Y/277 V AC UL 1077 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/
