M9F52304 Schneider Electric Industrial Automation Components
Part#:M9F52304
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

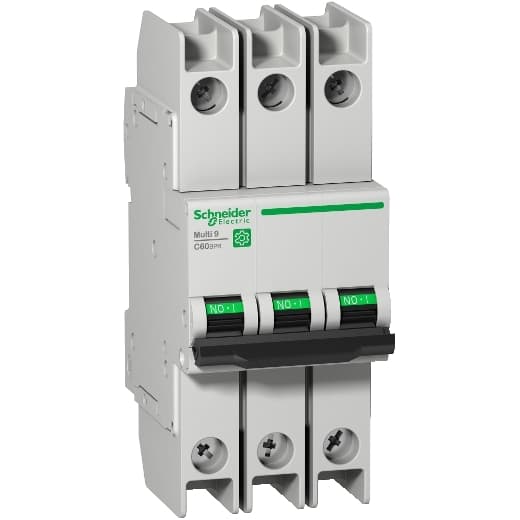

Schneider Electric M9F52304 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 3 Pole configuration and a rated current of 4A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. This MCB offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. The rated voltage (AC) for phase-to-phase connections is 440 V, with all three poles protected. It operates with a C tripping curve.
Product Details
- Device Application Distribution
- Curve Code C
- Height 5.00 in (127 mm)
- Tightening Torque 17.70 lbf.in (2 N.m) top or bottom
- Product Or Component Type Miniature circuit-breaker
- Suitability For Isolation Yes EN/IEC 60947-2
- Width 2.13 in (54 mm)
- Provision For Padlocking Padlockable
- Range Multi 9
- Trip Unit Technology Thermal-magnetic
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC
- Local Signalling ON/OFF indication
- Mechanical Durability 20000 cycles
- Network Type AC
- Contact Position Indicator Yes
- Electrical Durability 10000 cycles
- Line Rated Current 4 A 77 °F (25 °C) EN/IEC 60947-2
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Color Gray
- Poles Description 3P
- Mounting Mode Clip-on
- Connections - Terminals Ring terminal top or bottom)
- 9 Mm Pitches 6
- Product Name Multi 9 C60
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Number Of Protected Poles 3
- Control Type Toggle
- Depth 2.83 in (72 mm)
- Device Short Name C60BPR
- Mounting Support DIN rail
- Earth-Leakage Protection Without
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- Product Certifications IEC CCC CSA UL
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
